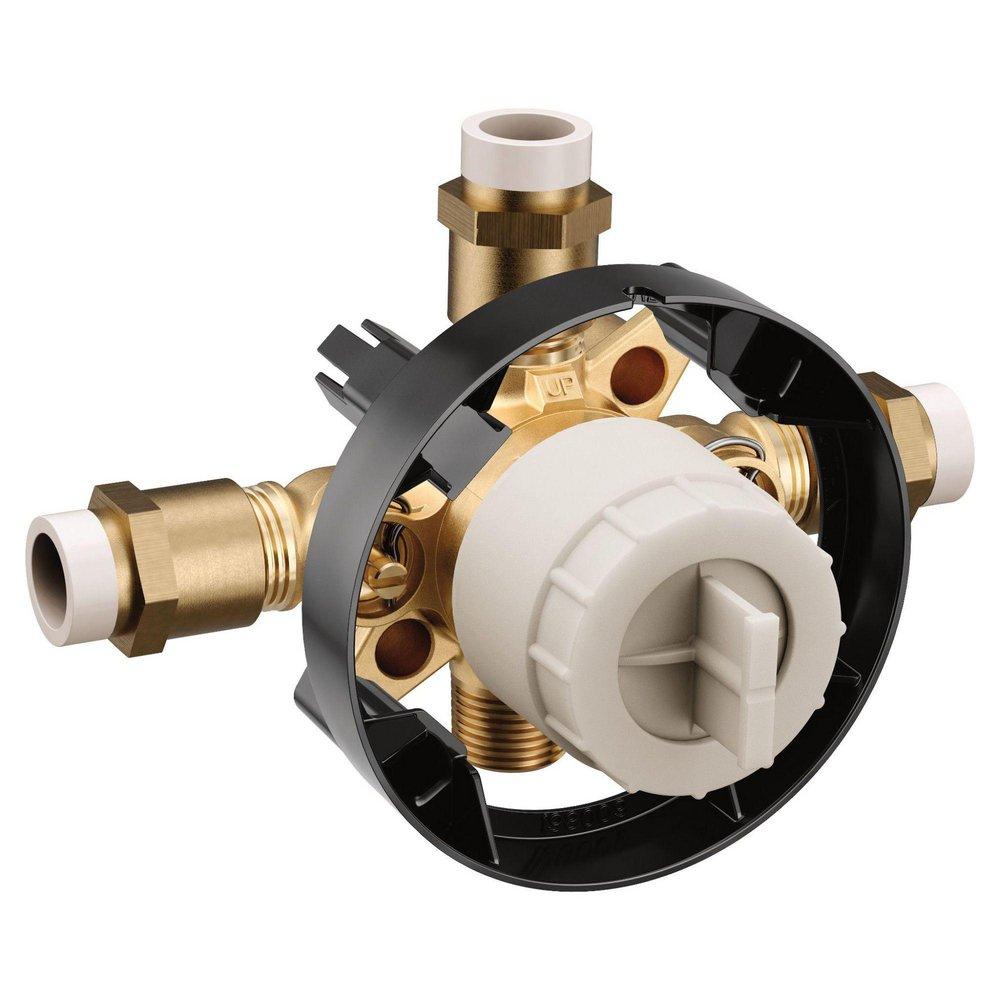

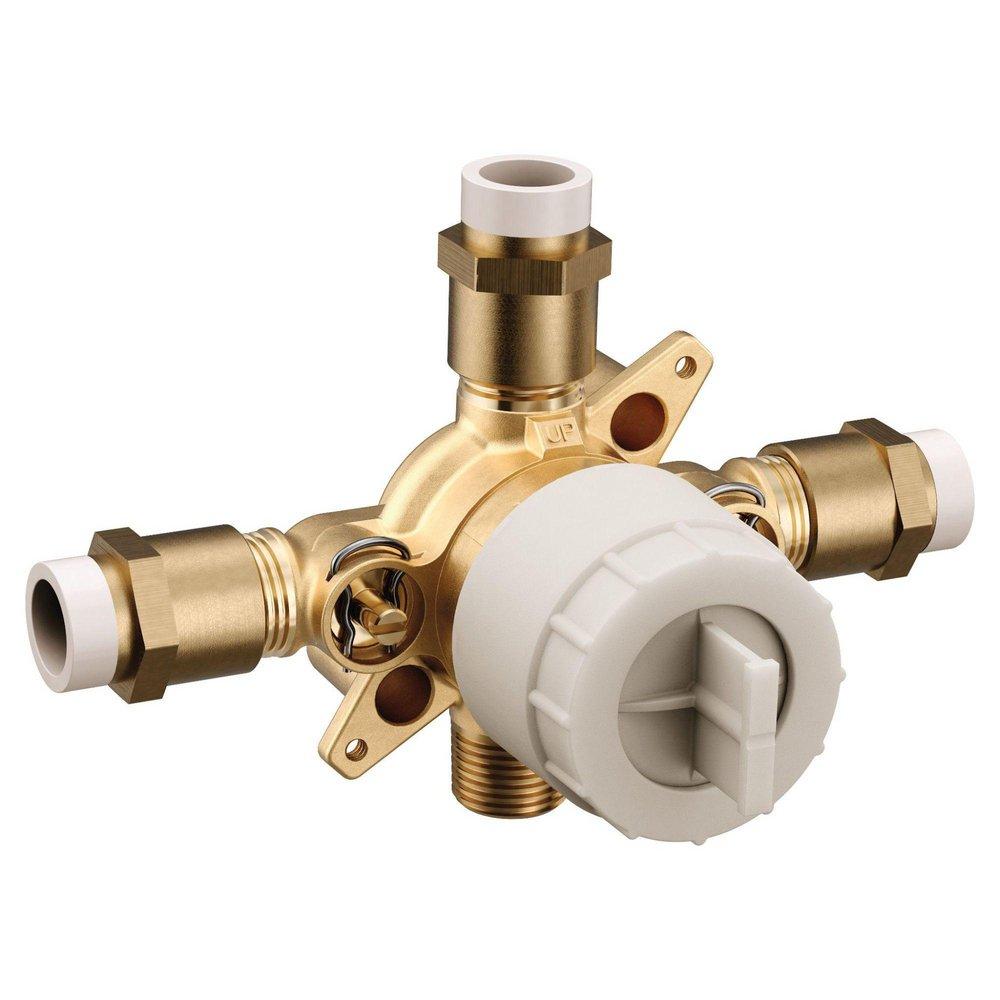

Moen U140VS M-Core 1/2 in. CPVC Connection Pressure Balancing Valve with Stops

Product Description

The Moen U140VS is a pressure balancing valve designed for easy installation and reliable water temperature control. This valve is part of the M-Core collection and is ideal for residential plumbing applications.

• Pressure balancing capabilities control temperature fluctuations.
• Features a quarter turn stop for easy operation.
• Compatible with various trim styles for design flexibility.

Product Highlights

The M-Core system simplifies installation with a common valve platform, allowing future upgrades without changing plumbing.

Product Information

Standard Information

• Manufacturer: Moen
• Part Number: U140VS

Technical Specifications

• Inlet Size: 1/2 inch CPVC
• Outlet Connection: 1/2 inch CC/IPS Tub
• Material: Brass
• Width: 6-5/8 inches
• Depth: 2-1/2 inches
• Pressure Rating: 200 psi Air, 300 psi Water
• Temperature Rating: 160 Degrees F
• Warranty: Lifetime Limited Against Leaks, 10 years for Multi-Family, 5 years for Commercial
• Standards/Approvals: ASME A112.18.1/CSA B125.1, ASSE 1016
