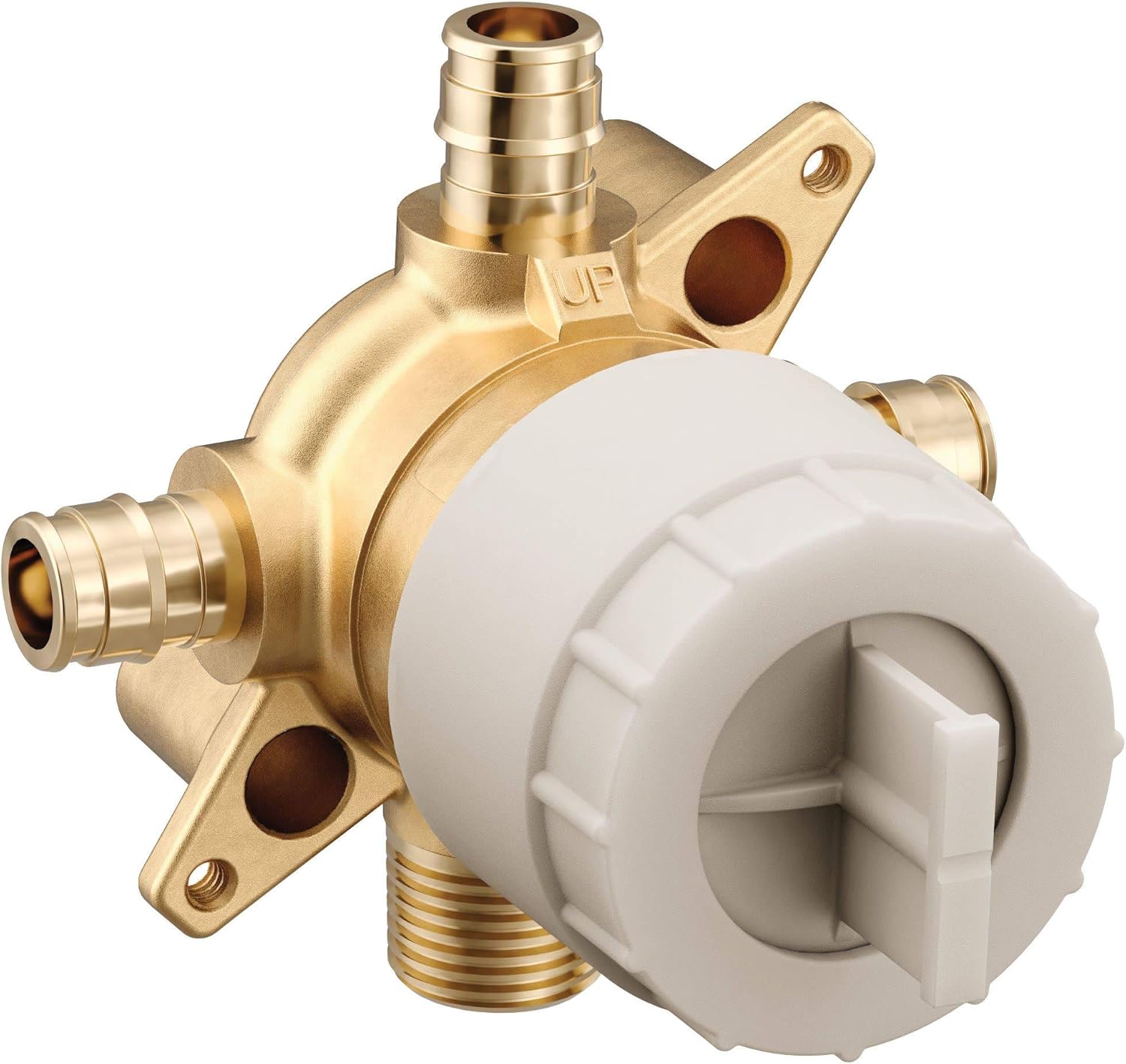

Moen U140CX M-CORE 4 Port Mixing Valve with Cold Expansion PEX Connections

Product Description

Moen's U140CX model from the M-CORE series offers superior functionality and flexibility in plumbing installations. This 4-port mixing valve, designed for tub and shower applications, supports cold expansion PEX connections, facilitating easier and more adaptable plumbing configurations.

• Pressure balancing features safeguard against temperature fluctuations.
• Built with a durable brass frame and an unfinished surface ready for custom finishes.
• Innovative volume control to tailor water flow in setups.

Product Highlights

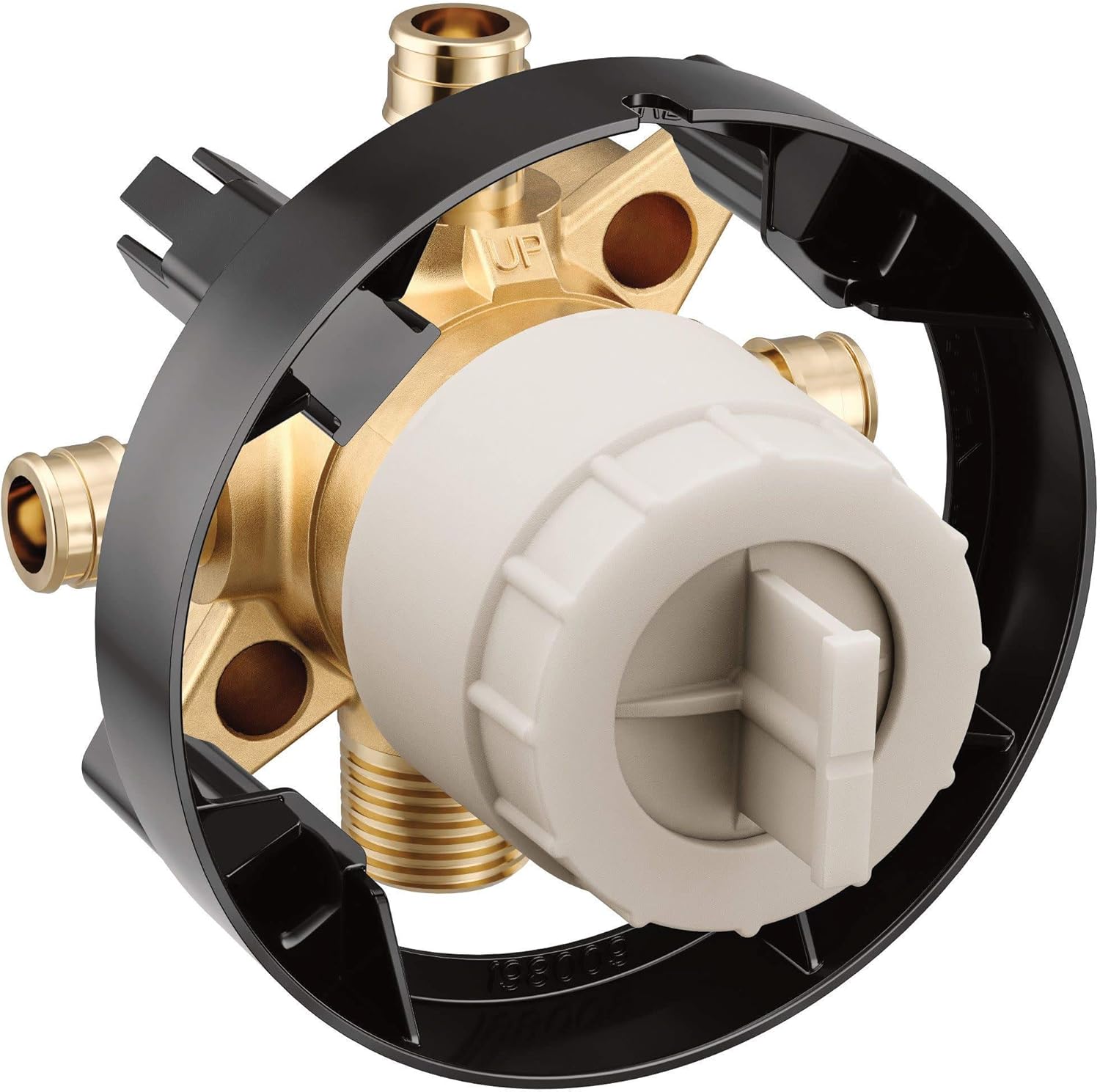

Equipped with Moen's limited lifetime warranty, the U140CX valve guarantees reliability and performance. Its versatility is enhanced by several design and functional elements like an integrated mounting bracket and an inbuilt test cap for streamlined installation and testing phases without cartridge removal.

Product Information

Standard Information

• Compatibility: Works effectively in both residential and commercial environments.
• Regulatory Compliance: Meets ASME A112.18.1/CSA B125.1, ASSE 1016 standards.

Technical Specifications

• Material: Brass
• Connection Types: 1/2 inch Cold Expansion PEX
• Pressure Ratings: 200 psi Air, 300 psi Water
• Temperature Range: Up to 160 Degrees Fahrenheit
• Mounting Type:
