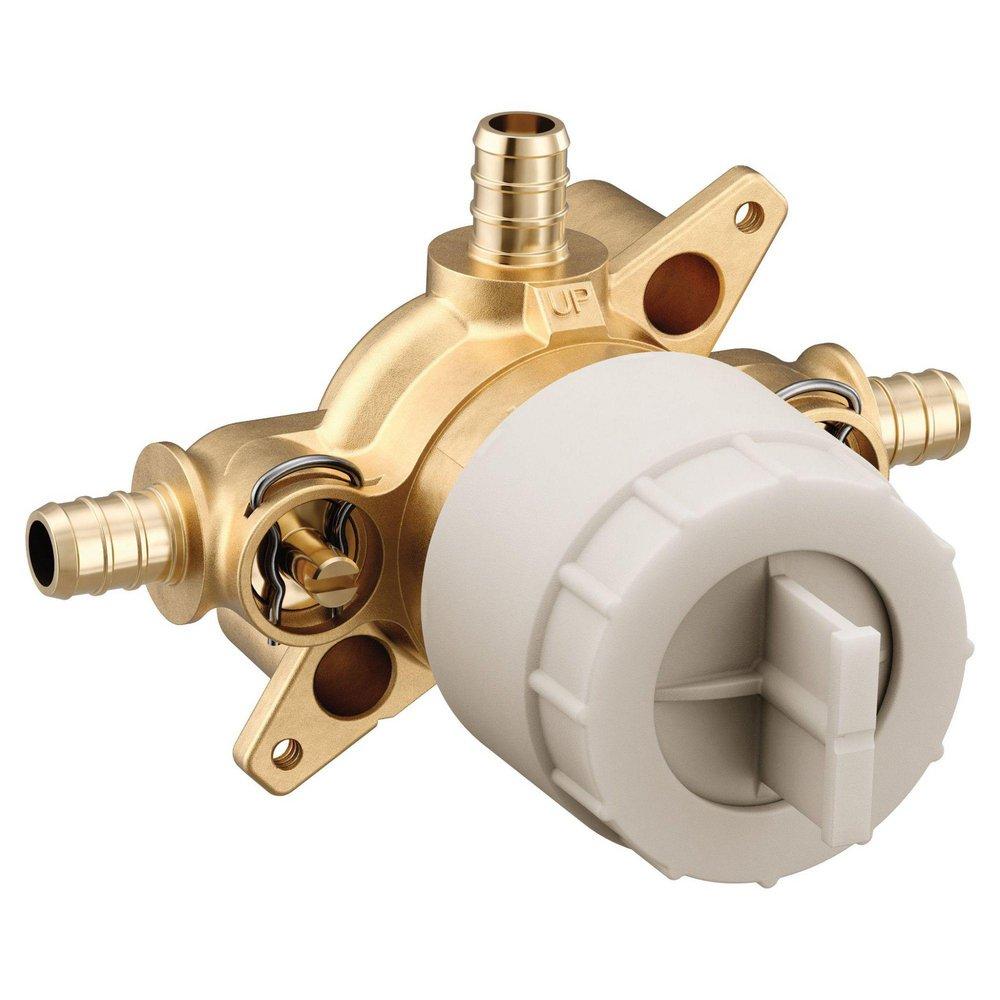

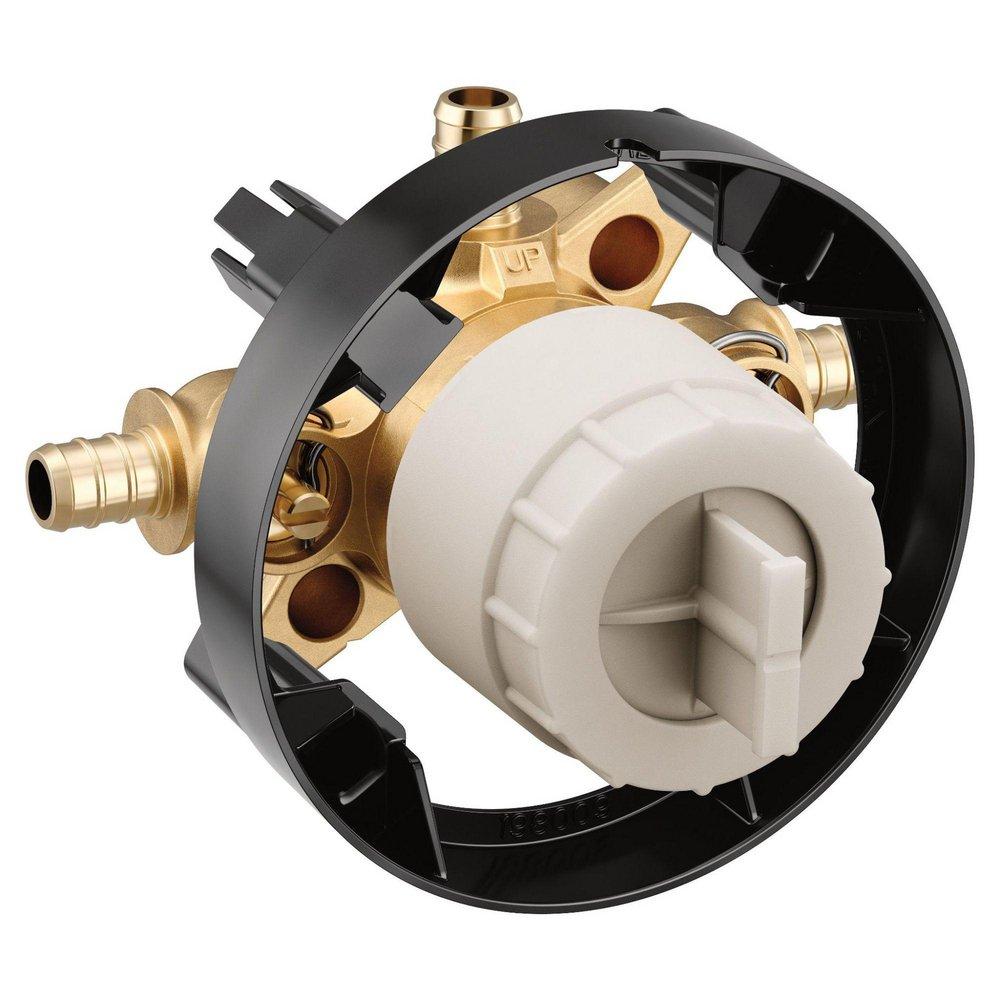

Moen U130XS M-Core 1/2 inch PEX Connection Pressure Balancing Valve with Stops

Product Description

The Moen U130XS is a pressure balancing valve that features a 1/2 inch PEX connection. This valve is designed to maintain water temperature stability during pressure fluctuations, making it essential for showers and bathtubs. The M-Core system allows for easy installation and future updates without changing existing plumbing.

• Pressure balancing for stable water temperature.
• 1/2 inch PEX connection for easy installation.
• Includes quarter turn stop and test plug.

Product Highlights

Moen’s M-Core valves are compatible with different trim options. This allows you to select your style after the initial installation, providing design flexibility.

Product Information

Standard Information

• Brand: Moen
• MPN: U130XS

Technical Specifications

• Inlet Connection: 1/2 inch Crimp Ring PEX
• Outlet Connection: 1/2 inch Crimp Ring PEX
• Material: Brass
• Pressure Rating: 200 psi Air, 300 psi Water
• Temperature Rating: 160 degrees F
• Width: 5 inches
• Depth: 2.5 inches
• Warranty: Lifetime limited against leaks and finish defects
