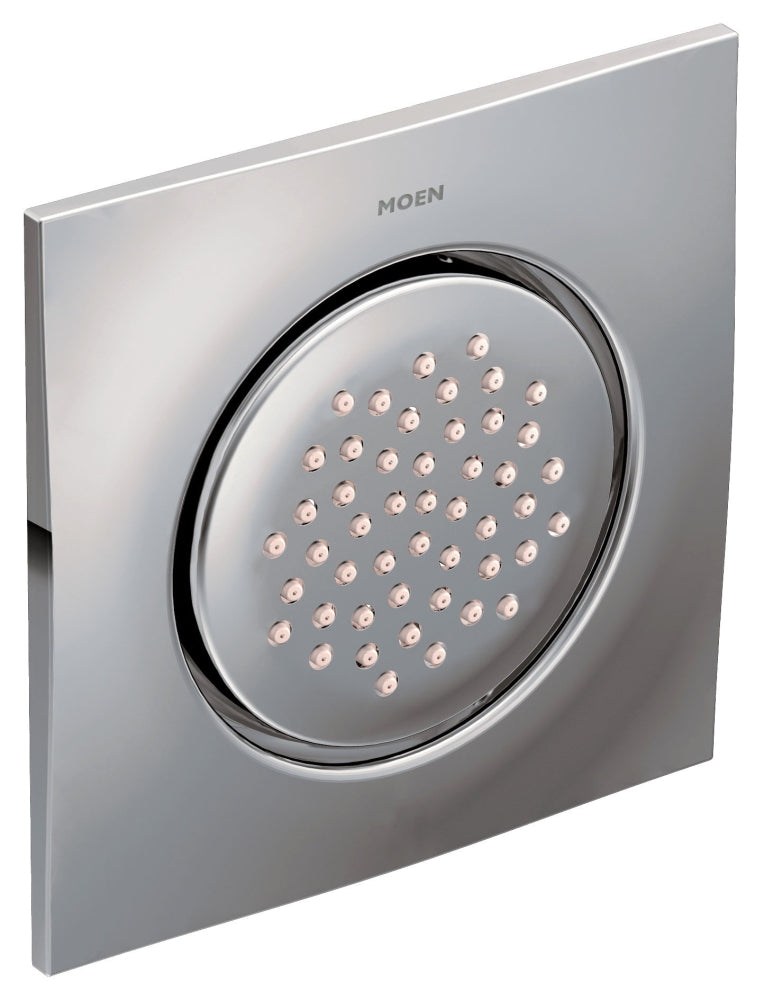

Moen TS1320 Body Spray TRIM SQUARE CHROME FLUSHMOUNT

Product Description

The Moen TS1320 is a body spray trim kit designed for flush mounting. This chrome body spray features a single function and a square design that integrates well with various bathroom styles. It has a half-inch IPS inlet connection and provides a flow rate of two gallons per minute at eighty PSI. The spray face tilts twenty degrees in any direction, allowing for flexible positioning during use.

• Single-function body spray
• Half-inch IPS inlet connection
• Flow rate of two gallons per minute at eighty PSI

Product Highlights

This body spray is built on the Moen M-PACT common valve system, which allows for future updates in faucet style without the need to replace plumbing. The immersion technology channels water effectively to deliver a balanced spray force.

Product Information

Standard Information

• Brand: Moen
• Catalog Number: TS1320

Technical Specifications

• Applicable Standard: ASME A112.18.1/CSA B125.1
• Finish: Chrome Plated
• Flow Rate: 2 GPM at 80 PSI
• Inlet Connection: 1/2 Inch IPS

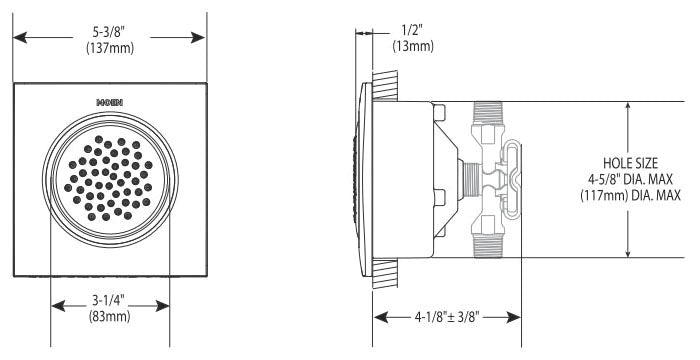

• Overall Dimensions: 5-3/8 Inch Length x 5-3/8 Inch Width x 4-1/8 Inch Depth
• Inclusions/Features: Immersion Technology, Spray Face Tilts 20 Degree
• Used On Item: Shower Faucet
• Product Type: Faucets
