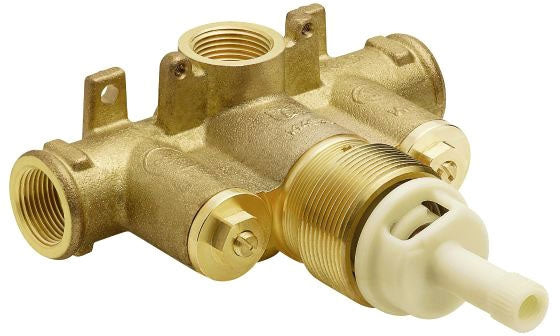

Moen S3371 ExactTemp 3/4 in. IPS Thermostatic Valve

Product Description

The Moen S3371 is a thermostatic valve designed for tub and shower installations. It features a three-quarter inch IPS connection and includes built-in check stops. This valve allows for easy adjustment and consistent temperature control.

• Type: 4-Port, Thermostatic, Rough-In
• Flow Rate: Eighteen gallons per minute at sixty PSI
• Material: Brass construction

Product Highlights

The Moen S3371 integrates a safety stop and an adjustable temperature limit stop. It is compatible with the Moen M-Pact valve system, which means you can change faucet styles without replacing plumbing. This valve is ideal for both residential and commercial applications.

Product Information

Standard Information

• Type: Thermostatic Valve
• Inlet Size: Three-quarter inch

Technical Specifications

• Flow Rate: Eighteen gallons per minute at sixty PSI
• Handle Type: Lever
• Built-In Features: Integral check stop, safety stop, adjustable temperature limit stop
• Applicable Standards: ASME A112.18.1/CSA B125.1/B125.3, ASSE 1016/1070
• Inlet Connection: IPS
• Outlet Connection: Three-quarter inch IPS
• Weight: Four point two one pounds
