Modine 46022 Time Delay Relay Board Kit

Product Description

The MODINE 46022 is a time delay relay board replacement kit designed for Modine heating units. The kit provides the relay board assembly needed to restore proper sequencing and timing control in the heater. Time delay relay boards manage the startup and shutdown sequence of heating elements and blower motors, protecting the system from thermal stress. This kit is intended for installation by qualified HVAC technicians familiar with commercial or industrial unit heater service. The included components allow a complete, code-compliant replacement rather than a partial component swap.

This kit is suited for use in Modine unit heater applications where the original time delay relay board has failed or is showing signs of erratic operation. It is packaged as an OEM-style replacement kit and includes all materials needed for a full installation, including a new wiring decal and installer's guide. Technicians who need only the relay board without the supplemental materials can source the board separately under Modine part number 5H78126-1.

Key Features

• Complete replacement kit includes Modine relay board part 5H78126-1
• OEM Elan equivalent part 8410012X8
• Includes installer's guide for reference during service
• Includes new wiring decal for the heater
• Designed as a direct OEM-style replacement to restore original timing and sequencing function

Compatibility

Designed as an OEM-style replacement time delay relay board kit for Modine unit heaters. Equivalent to OEM Elan part 8410012X8. Relay board component also available separately as Modine part 5H78126-1.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the unit heater before removing or installing any control board components. Refer to the included installer's guide and new wiring decal to confirm correct wiring terminations before restoring power. Follow all applicable local codes and manufacturer procedures when servicing gas-fired or electric unit heaters.

Technical Specifications

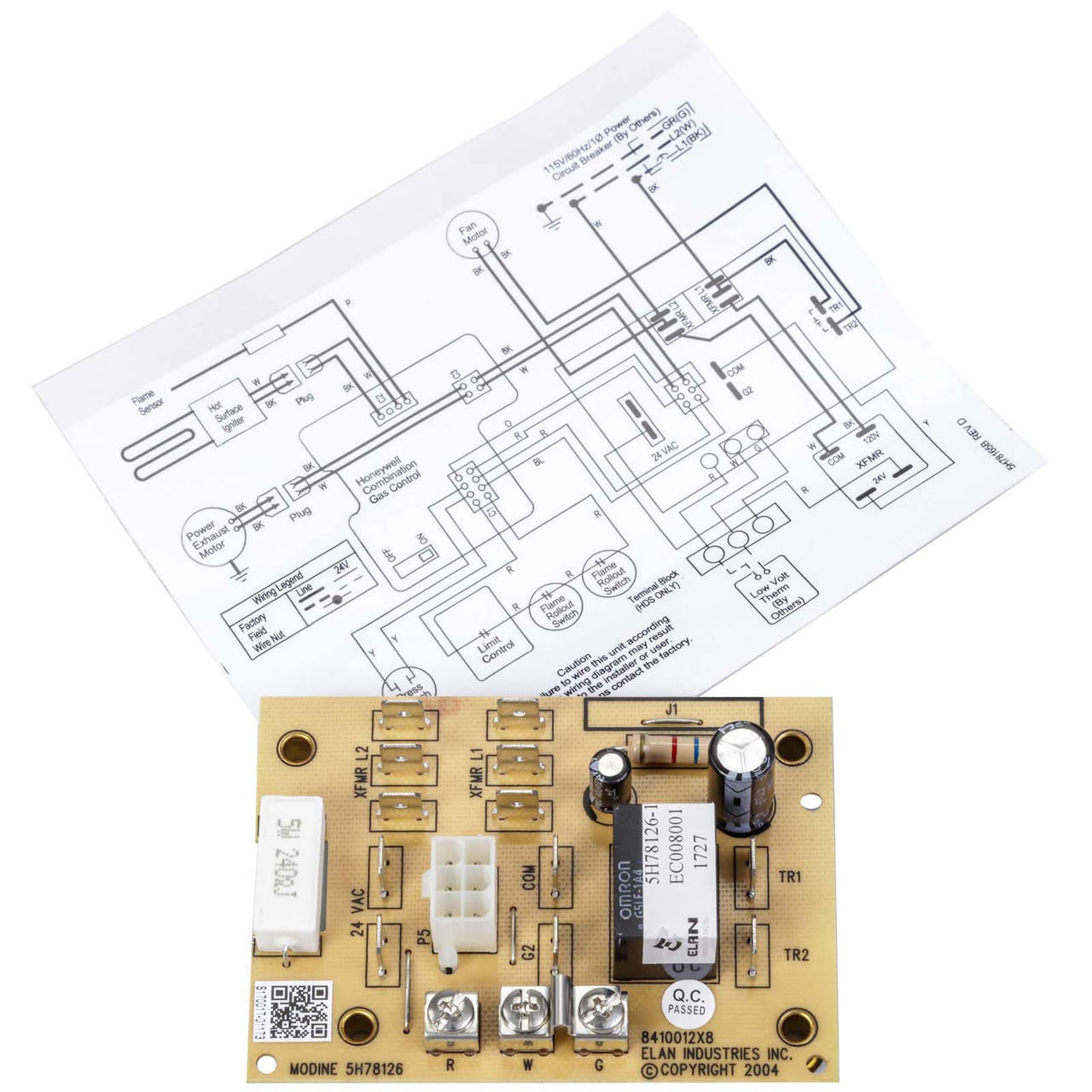

• Kit Contents: Relay board (5H78126-1), installer's guide, new wiring decal
• OEM Equivalent: Elan 8410012X8

Standard Information

• Brand: MODINE
• Manufacturer Part Number: 46022
