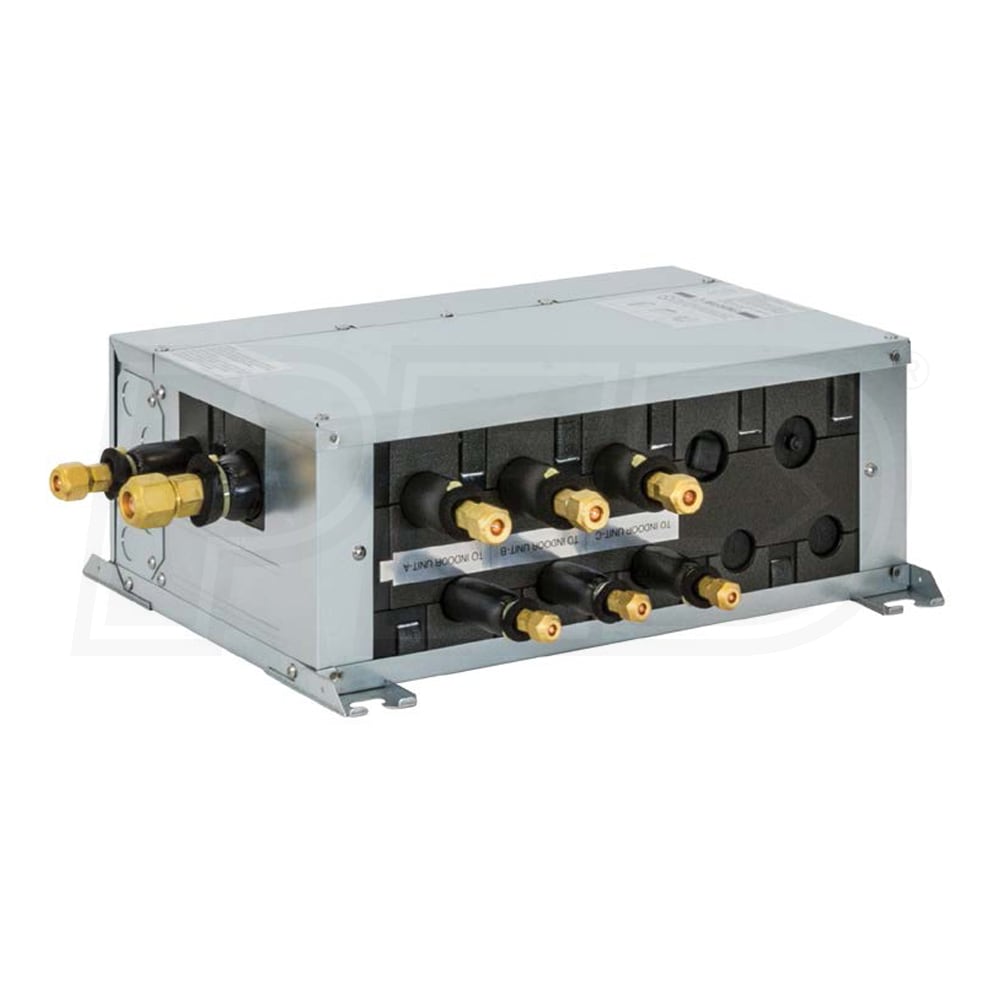

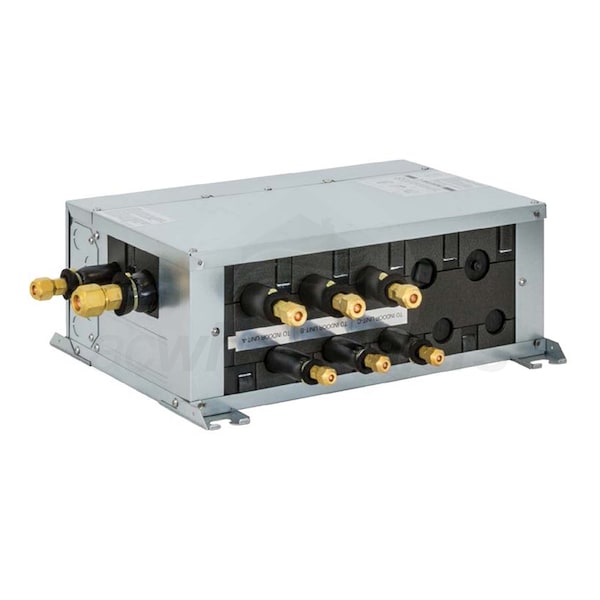

Mitsubishi Electric TAC-MKA32BC Multi-Zone Branch Box

Product Description

The Mitsubishi Electric TAC-MKA32BC is a branch box for multi-zone mini-split systems. It works with Mitsubishi MXZ-C series outdoor condensers. The unit manages refrigerant and power flow to connected indoor units.

• Manages refrigerant and power flow to indoor units.
• Features electronic LEVs for optimal refrigerant flow and coil temperature.
• Allows connection of up to three indoor units.

Product Highlights

This branch box enhances performance by ensuring efficient refrigerant distribution, making it an essential component for multi-zone applications.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: TAC-MKA32BC

Technical Specifications

• Ports Quantity: 3
• Power Supply: Single phase, 208/230 V, 60 Hz
• Input: 0.003 kW
• Running Current: 0.05 A
• External Finish: Galvanized steel
• Width: 21.3125 inches
• Depth: 16.34375 inches
• Height: 6.6875 inches
• Gas Connection Size: 5/8 inch
• Suction Connection Size: 3/8 inch
• Line Set A Liquid Connection: 1/4 inch
• Line Set A Gas Connection: 3/8 inch
• Line Set B Liquid Connection: 1/4 inch
• Line Set B Gas Connection: 3/8 inch
• Line Set C Liquid Connection: 1/4 inch
• Line Set C Gas Connection: 3/8 inch
