Mitsubishi Electric pac-sdw01rc-3 Wired Remote Controller

Product Description

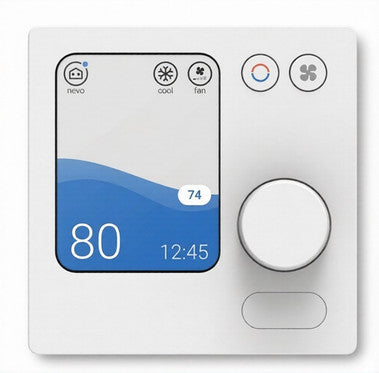

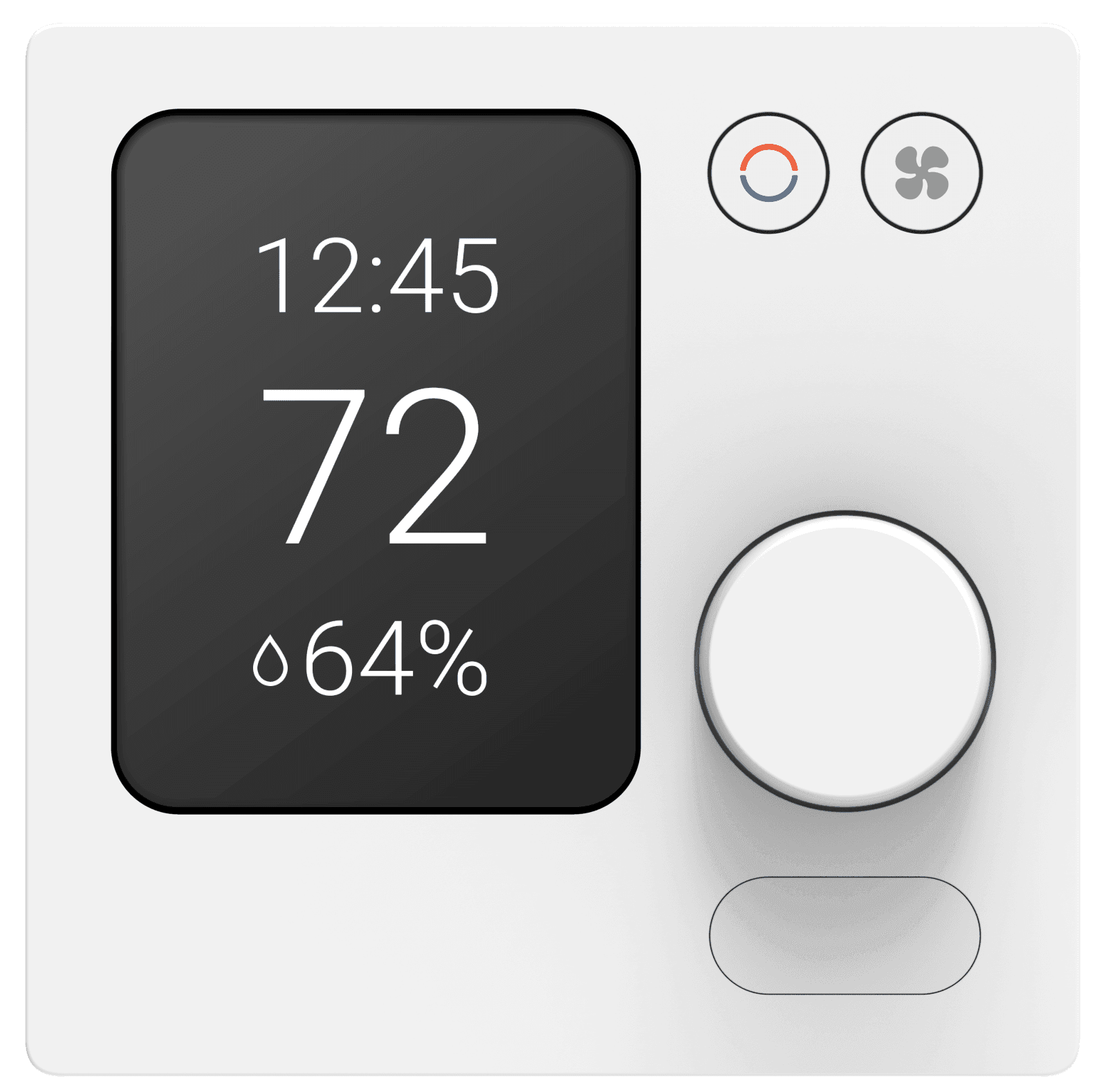

The MITSUBISHI ELECTRIC pac-sdw01rc-3 is a wall-mounted wired remote controller designed for ducted and ductless indoor units. It gives installers and homeowners direct control over setpoints, fan operation, and scheduling from a single wall-mount location. The controller connects via the red connector on the Wireless Interface 2 or the CN105 connector on units with built-in Wi-Fi. It is fully compatible with the Comfort App, enabling Auto Mode and schedule management through the app. Licensed HVAC technicians and system integrators typically handle installation and commissioning.

This controller is suited for residential and light commercial applications where a hardwired wall controller is preferred over a handheld or infrared remote. It automatically sets fan operation on ducted models when the setpoint is reached and applies model-specific minimum and maximum temperature limits. The updated menu layout includes PAA configuration (ISU 201), supporting integration with dehumidifiers, ventilation units, and indoor unit connectors. Furnace changeover status, shown as Extended or Balanced, is displayed directly on the controller interface.

Key Features

• Wall-mounted wired design for permanent, reliable control of ducted and ductless indoor units
• Compatible with the Comfort App for Auto Mode and scheduling via the CN105 or Wireless Interface 2 red connector
• Automatic fan operation setting on ducted models when setpoint is satisfied
• Model-specific minimum and maximum temperature limit enforcement
• PAA configuration (ISU 201) supports dehumidifier, ventilation unit, and indoor unit connector integration
• Furnace changeover status display (Extended or Balanced), reappearing error codes, and included decorative wall plate

Compatibility

Designed for use with Mitsubishi Electric ducted and ductless indoor units that have a CN105 connector or are paired with the Wireless Interface 2. Compatible with the Mitsubishi Electric Comfort App for app-based scheduling and Auto Mode control.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with low-voltage control wiring. Power down the indoor unit at the disconnect or breaker before making any wiring connections. Follow all applicable local electrical codes and the manufacturer wiring diagram for connector assignments. Do not connect the controller to line voltage terminals.

Technical Specifications

• Controller Type: Wall-mounted wired remote controller
• Connection Type: CN105 connector or Wireless Interface 2 red connector
• App Compatibility: Mitsubishi Electric Comfort App
• Supported Functions: Auto Mode, scheduling, PAA configuration (ISU 201), furnace changeover status display
• Included Accessories: Decorative wall plate

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: pac-sdw01rc-3
