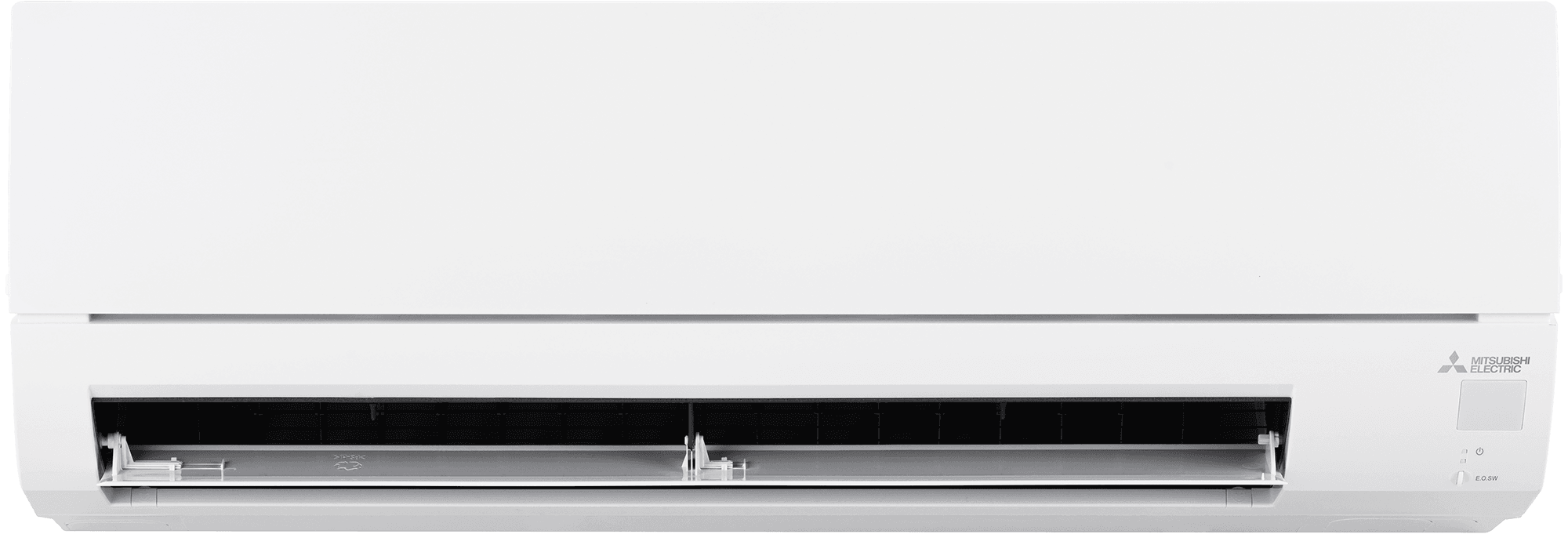

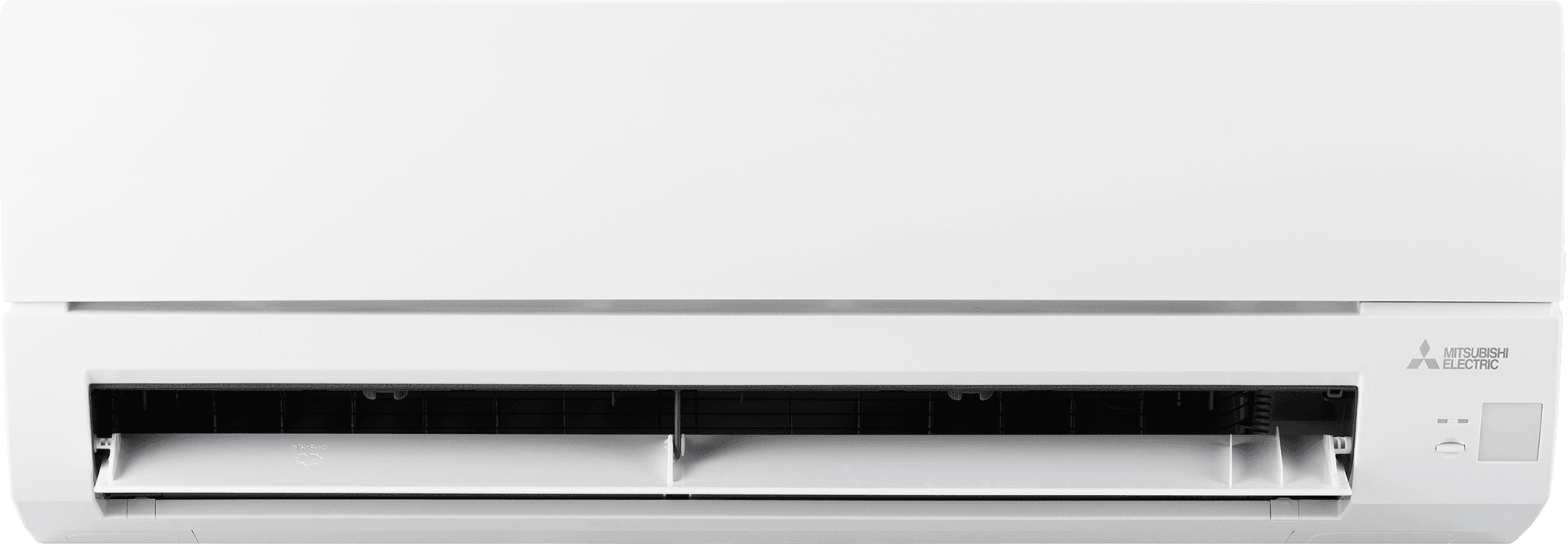

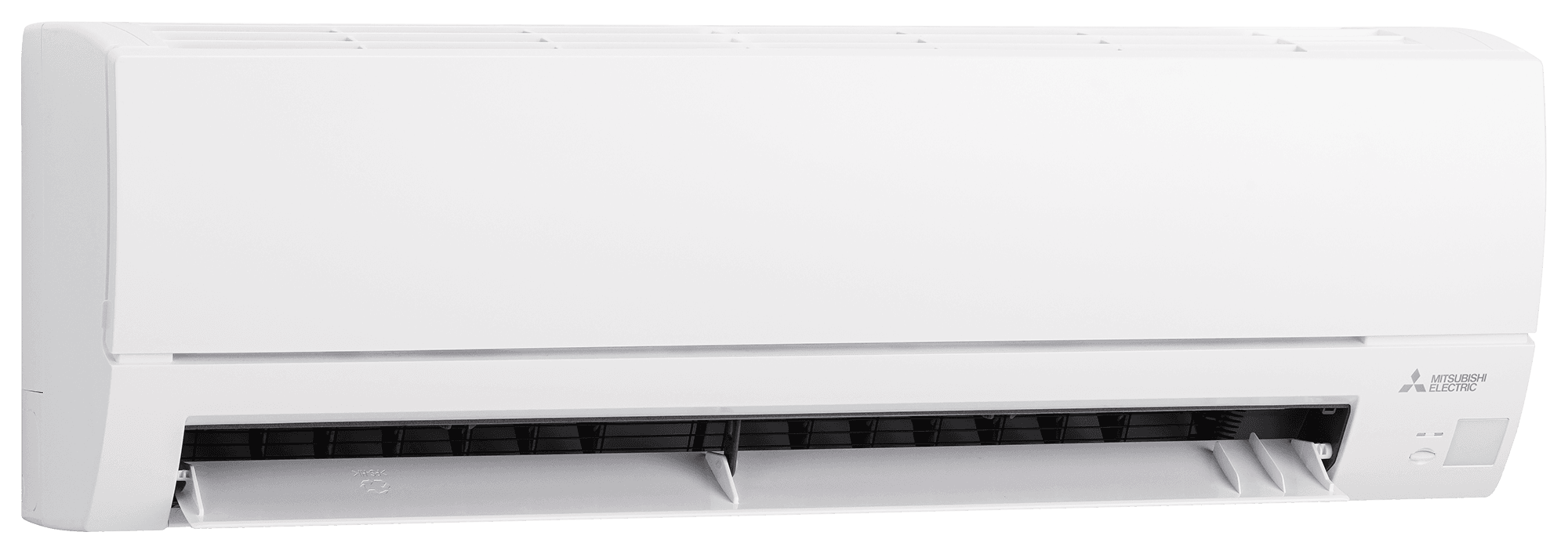

Mitsubishi Electric MSZ-WX12NL R454B: 12,000 BTU WX-SERIES HEAT PUMP AHU

Product Description

The Mitsubishi Electric MSZ-WX12NL is a R454B 12,000 BTU WX-SERIES heat pump AHU. Designed for single-zone systems, this wall-mounted indoor unit provides personalized, energy-efficient comfort. It features a stylish flat panel design and customizable settings. The unit operates quietly and is easy to install with a convenient mounting plate, making it suitable for primary or supplemental heating and cooling.

• Econo Cool adjusts airflow to maintain comfort while using less energy.
• Nano Platinum Filter reduces certain nonliving particles and deodorizes air.
• Swing Mode moves air throughout the room like an oscillating fan.

Product Highlights

This Mitsubishi Electric unit offers efficient heating and cooling with advanced filtration and customizable airflow.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-WX12NL

Technical Specifications

• Series: M-Series
• Type: Wall-mounted
• Model: MSZ-WX
• Capacity range: 9,000 to 24,000 BTU/H
• Sound level: As low as 22 dB(A)
• SEER2: Up to 18
• HSPF2: Up to 8.5
• Refrigerant: R-454B
• Product Line: M-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: No
• Remote Control: Wireless
• Installation Location: Indoor
• Cooling BTU: 12000
• Cooling Capacity: 12000 BTU
• Heating Capacity: 12200 BTU
• Moisture Removal: 3.1 Pints/Hour
• Maximum Air Flow: 391 CFM
• Minimum Air Flow: 132 CFM
• Minimum Sound Level: 22 dB
• Maximum Sound Level: 45 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 11 1/16 Inches
• Product Width: 33 Inches
• Product Depth: 9 Inches
• Product Weight: 20 Pounds
• Shipping Weight: 23 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• BTU Cooling Rating: 12,000 BTU/h
• BTU Heating Rating: 12,200 BTU/h
• CFM Airflow: 147-381 CFM
• Depth: 9 in
• EER2: 9.0
• ENERGY STAR Certified: No
• Height: 11.063 in
• Motor Type: ECM
• Number of Speeds: 4
• Packaged Depth: 13.25 in
• Packaged Height: 11.25 in
• Packaged Width: 35.5 in
• Product Type: Wall-Mount Indoor Unit
• Sound Level: 45 dB(A)
• Suction Line Size: 3/8 in
• Tonnage: 1.0 Ton
• Voltage Rating: 208/230 V
