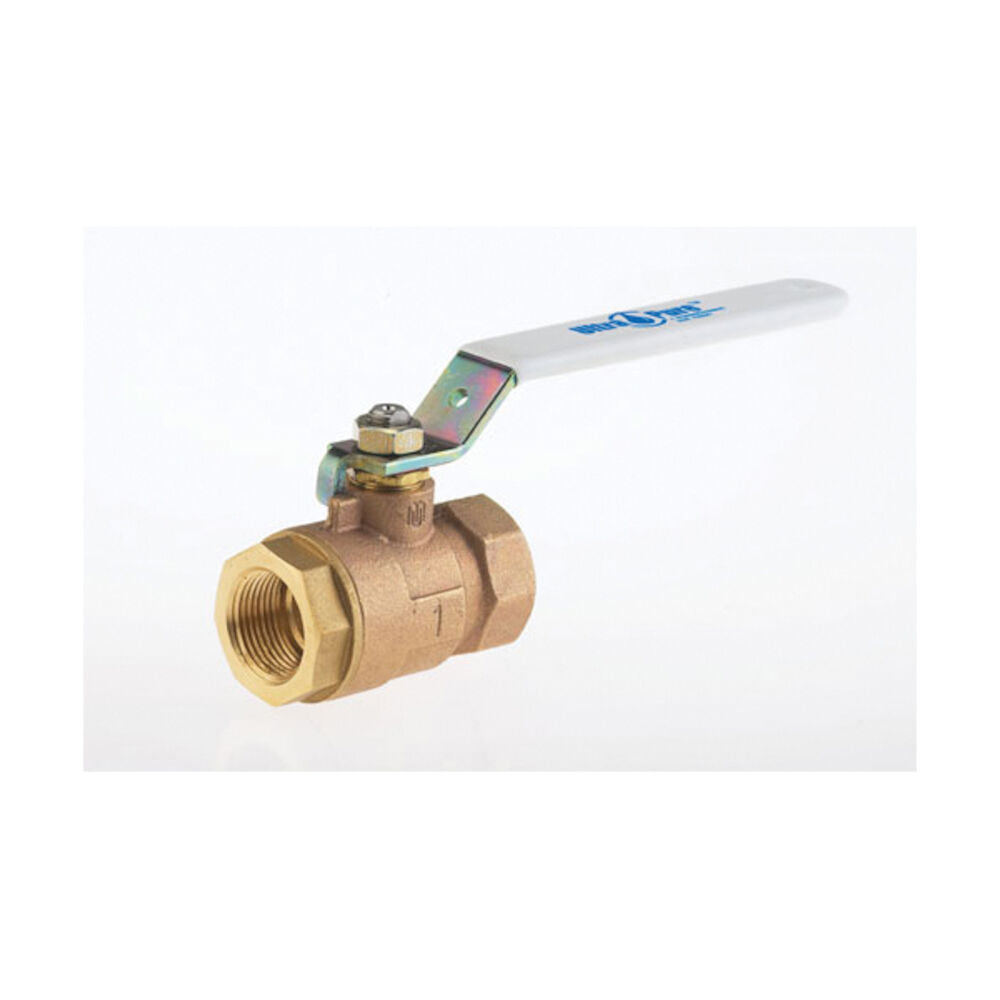

Milwaukee UPBA100S-1 2-Piece Ball Valve - Bronze, Threaded

Product Description

The Milwaukee UPBA100S-1 is a 2-piece ball valve that provides reliable shut-off and flow control. It features a cast bronze body and a durable 316 stainless steel ball. The valve has a threaded end style and a standard port suitable for various plumbing applications.

• Pressure rated at 600 psig
• 1-inch nominal size with a 0.88-inch orifice
• Constructed with RPTFE seat and thrust washer

Product Highlights

This ball valve is built for durability and long-lasting performance in plumbing systems.

Product Information

Standard Information

• Brand: Milwaukee
• Model Number: UPBA-100S-1

Technical Specifications

• Ball Material: 316 Stainless Steel
• Body Material: Cast Bronze
• End Style: Threaded
• Inlet to Outlet Length: 3.17 inches
• Nominal Size: 1 inch
• Orifice Size: 0.88 inches
• Port Type: Standard
• Pressure Rating: 600 psig
• Softgoods Material: RPTFE
• Top to Inlet Center: 2-1/4 inches
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Type: 2-Piece
