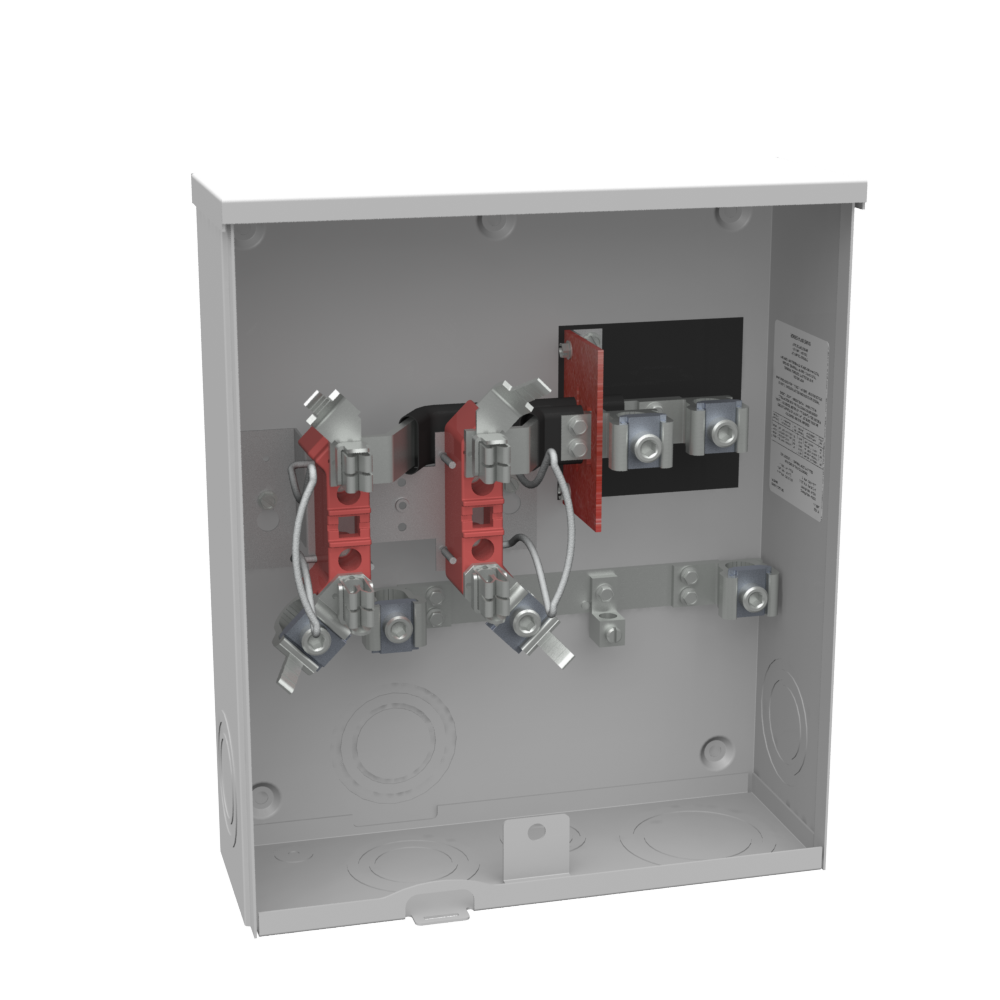

Milbank U4413-O-KK-BL Ringless Meter Socket With Horn Bypass 200-Amp

Product Description

The Milbank U4413-O-KK-BL is a ringless meter socket designed for reliable power distribution. This meter socket supports a current rating of 200-Amps and is compatible with voltages up to 600-Volt AC. It features a robust G90 galvanized steel enclosure with a powder-coated finish, ensuring durability and protection in various environments.

• Rated for 200-Amps and 600-Volt AC
• Surface mountable design
• Accommodates wire sizes from 6-AWG to 350-KCMIL

Product Highlights

This meter socket is essential for utility access and safe power distribution. It includes features such as four terminal jaws and barrel lock for security. Designed for underground and side wireway cable entry, it simplifies installation with its single lay-in line and load side connections.

Product Information

Standard Information

• Brand: Milbank
• Manufacturer Part Number: U4413-O-KK-BL

Technical Specifications

• Dimensions: 13 Inch Width x 4-1/2 Inch Depth x 15-1/4 Inch Height
• Material: G90 Galvanized Steel
• Mounting: Surface
• Enclosure Type: NEMA 3R
• Number of Jaws: 4
• Amperage Rating: 200 Amp
• Voltage Rating: 600 Volt AC
• Feed Location: Underground, Side Wireway
• Standards: UL Listed
