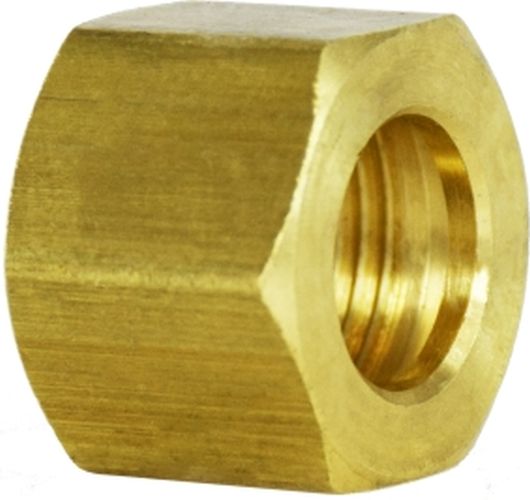

Midland Metal 18036 Brass Compression Nut 5/16 Pack 1

Product Description

The Midland Metal 18036 is a brass compression nut for 5/16 in tubing. It provides a compression connection for brass, copper, aluminum, and thermoplastic tubing and measures 0.44 in length with a 0.56 in hex across flats and 1/2-24 threads. Rated to 300 psi and operating from -65 to 250 F, the fitting suits standard compression fitting assemblies and tubing connections.

• Brass construction compatible with brass, copper, aluminum, and thermoplastic tubing
• Compression connection for 5/16 in tubing with 1/2-24 thread size
• 0.44 in length, 0.56 in hex across flats; rated 300 psi and -65 to 250 F

Product Highlights

Brass 5/16 in compression nut; 1/2-24 thread; 300 psi pressure rating; -65 to 250 F temperature range.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18036

Technical Specifications

• Brand: Midland Metal
• MPN: 18036
• Product Type: Compression nut
• Material: Brass
• Connection Size: 5/16 in
• Connection Type: Compression
• Length: 0.44 in
• Hex Across Flats: 0.56 in
• Thread Size: 1/2-24
• Pressure Rating: 300 psi
• Temperature Range: -65 to 250 F
• For Use With: Brass; Copper; Aluminum; Thermoplastic tubing
• Category: Brass fittings
• Standard Pack: 1
