MICROMETL ECD-SRT12CB-DCDS Electromechanical Controller

Product Description

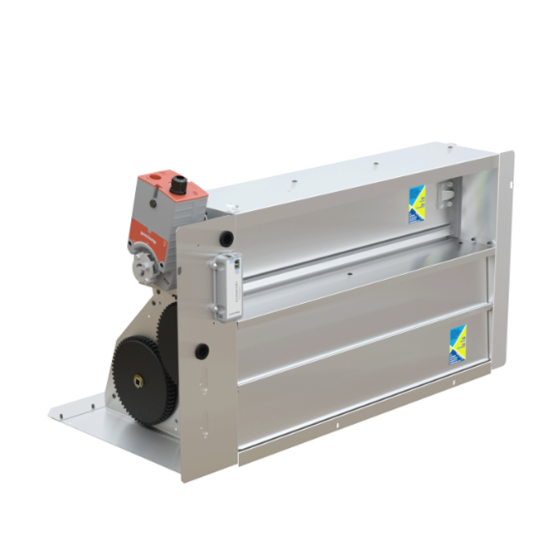

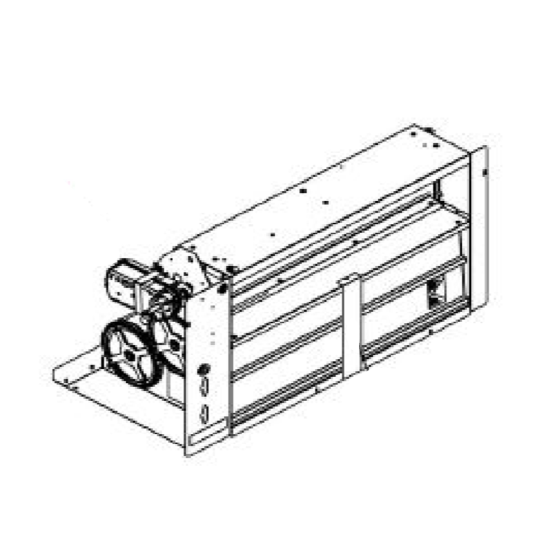

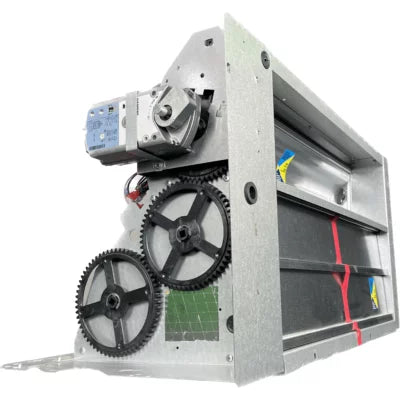

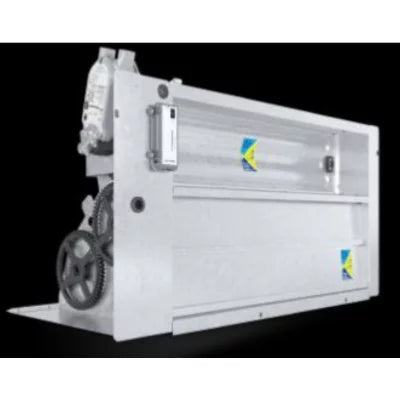

The MICROMETL ECD-SRT12CB-DCDS is a vertical economizer designed for ultra-low leak performance. This unit features a painted rain hood and an aluminum filter, ensuring durability and efficiency in use. It comes with all necessary panels and hardware for installation. The controller options include either a Siemens POL224.00 or Honeywell Jade W7220, both supporting multiple speeds. An adjustable dry bulb sensor and actuator are included, providing versatile functionality.

• Vertical orientation for space-saving installation
• Ultra low leak economizer design for energy efficiency
• Compatible with Siemens and Honeywell controllers

Product Highlights

This economizer is designed for effective air flow and energy savings in HVAC systems, making it suitable for both commercial and residential applications.

Product Information

Standard Information

• Brand: MicroMetl
• Air Flow Direction: Vertical

Technical Specifications

• Length: 32.375 inches
• Width: 16.125 inches
• Height: 17 inches
• Weight: 45 pounds
• Country of Origin: USA
• Prop 65: Yes
• Exterior Dimensions (D): 20.000000 inches
• Exterior Dimensions (W): 33.000000 inches
• Exterior Dimensions (H): 18.000000 inches
• Shipping Weight: 45.000000 lbs
• Leakage Compliance: Genesis Ultra Low Leak
• AMCA Certification: YES
• Controller: Honeywell Jade W7220 Single/Multiple Speed Electromechanical Controller
• Sensor: Adjustable Dry Bulb Sensor
• Actuator: Honeywell Actuator
• Operating Weight: 45 lbs
• Cubic Measurement: 5.0604
• Safety Standards: California Prop 65
