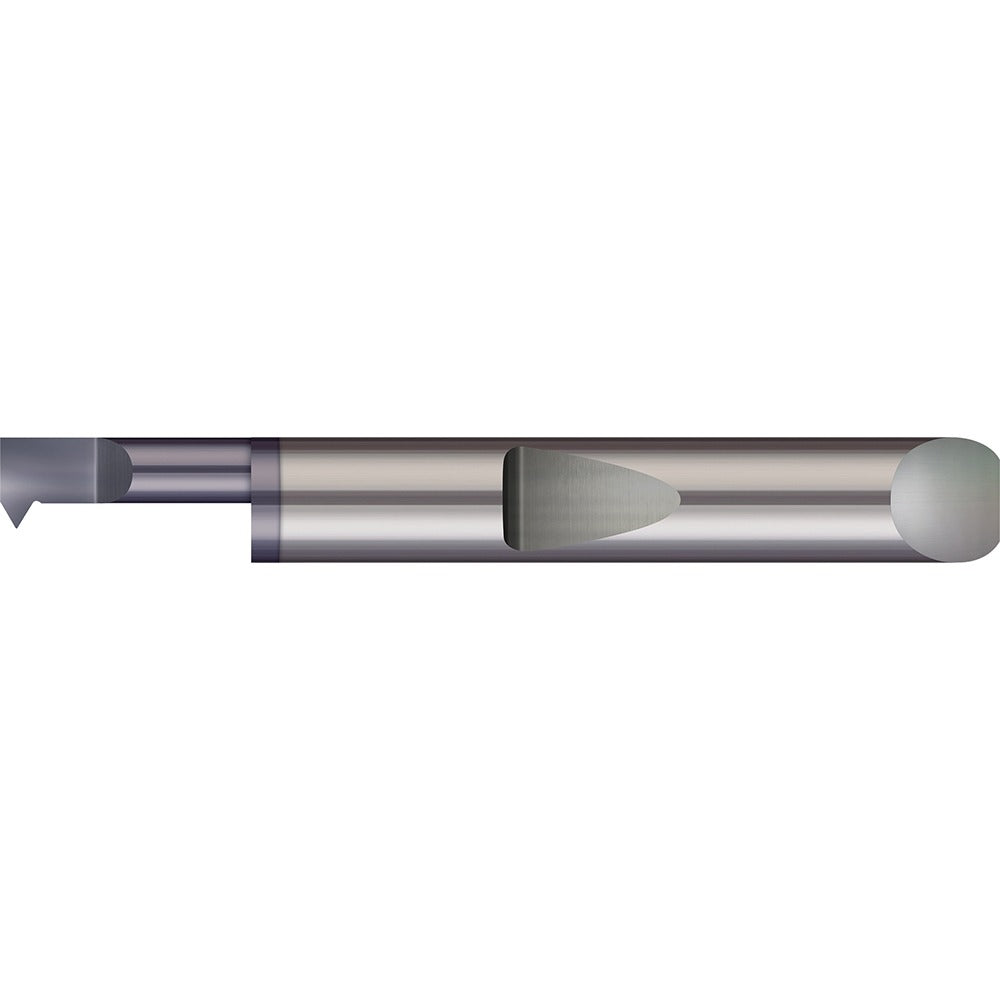

Micro 100 QIT-230600X Internal Threading Tool Solid Carbide

Product Description

The MICRO 100 QIT-230600X is a single point internal threading tool ground from solid carbide and coated with an AlTiN finish for extended tool life in demanding materials. It handles a threading range of 20 to 48 threads per inch with a minimum thread diameter of 0.23 inches and a cutting depth of 0.6 inches. The 60-degree profile angle suits standard unified thread forms. This tool is intended for use in CNC lathes and turning centers where precise internal thread generation is required. Machinists and tool room operators working in production or job shop environments will find this a direct-fit option for tight-bore threading applications.

This tool is suited for internal threading operations in ferrous and non-ferrous metals where a compact shank and reliable AlTiN coating help maintain performance over extended run times. The 5/16-inch shank diameter fits standard boring bar holders and quick-change tooling systems common to CNC turning setups. Its 2-inch overall length keeps the overhang manageable for shallow to mid-depth bore work. No through-coolant is provided, so flood or mist coolant directed at the cutting zone is the recommended approach for heat management.

Key Features

• Solid carbide construction for rigidity and wear resistance in single point threading
• AlTiN coating reduces heat buildup and extends tool life in steel and hardened materials
• 20 to 48 TPI range covers a wide span of unified and metric-equivalent internal thread pitches at the 60-degree profile
• 0.6-inch cutting depth supports thread generation in bores with adequate clearance
• 0.055-inch projection from edge provides controlled cutting geometry with minimal deflection
• No coolant-through design keeps the tool body compact for small-bore applications

Compatibility

Designed for use in CNC lathes and turning centers equipped with 5/16-inch shank tooling holders that require a solid carbide single point internal threading tool with a 60-degree profile.

Installation Notes

A licensed or qualified machinist should install and set this tool in accordance with the machine tool manufacturer's tooling specifications. Power down and lock out the spindle before seating or adjusting the tool in its holder. Verify shank clamp torque per the toolholder manufacturer's requirements and confirm tool runout before cutting. Use appropriate flood or mist coolant directed at the cutting zone since this tool does not include a through-coolant path.
