Metraflex HPT20400 Expansion Joint 4 TBE Threaded

Product Description

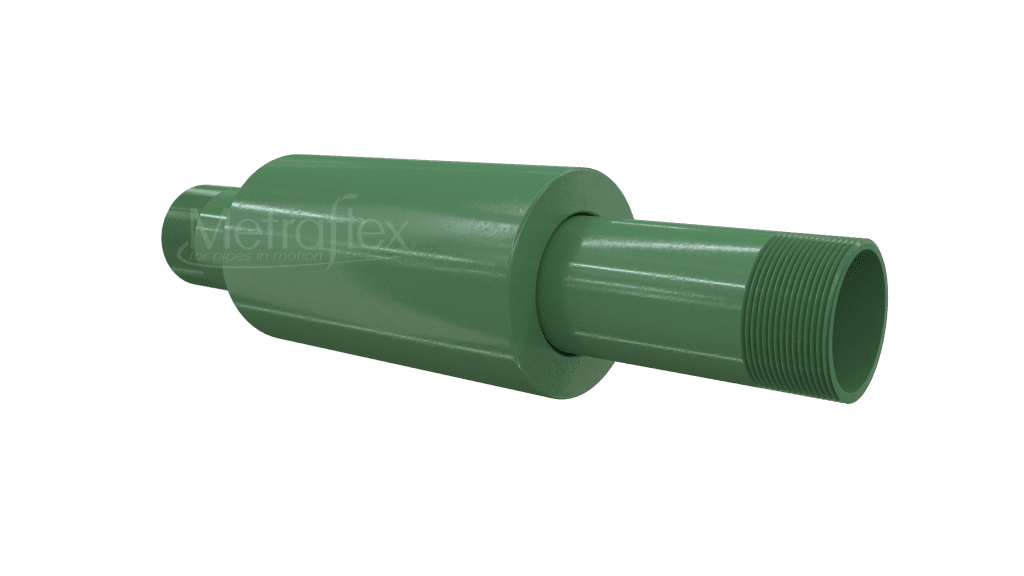

The Metraflex HPT20400 is a four-inch TBE (Threaded Both Ends) expansion joint. It is built to manage axial movement in piping systems effectively. This product is ideal for high-pressure applications, designed as an externally pressurized expansion compensator.

• Designed for axial movement only
• Complies with MIL-DTL-17813H standards
• Not suitable for potable water systems

Product Highlights

This expansion joint is specifically made to accommodate the demands of piping systems under high pressure. Proper guidance and anchoring are necessary, following the guidelines provided by the Expansion Joint Manufacturers Association.

Product Information

Standard Information

• Brand: Metraflex
• MPN: HPT20400

Technical Specifications

• Maximum Working Pressure: 175 PSI (1206 kPa)
• Maximum Working Temperature: 750°F (399°C)
• Maximum Test Pressure: 250 PSI (1809 kPa) @ 70°F
• Axial Compression: 2 inches (50 mm)
• Axial Extension: 1/2 inches (13 mm)
• Effective Area: 20.8 in²
• Spring Rate: 484 lb/in
• Pipe Size: 4 inches
