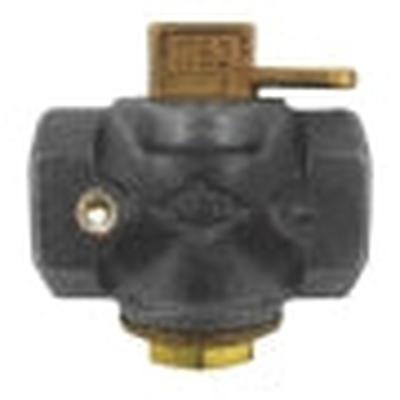

McDonald 200560BCMV 2 560BC Meter Valve W/1/8 Tap

Product Description

The McDonald 200560BCMV is a meter valve designed with a one-eighth inch test plug. This flat head lockwing plug style valve is ideal for various applications in plumbing and gas systems. It features a nominal size of two inches and a FNPT connection type. This valve is suitable for both natural gas and LP gas pressure systems.

• Made from cast iron for durability.
• Pressure rated up to 175 PSIG.
• Temperature operating range from negative twenty to one hundred fifty degrees Fahrenheit.

Product Highlights

This valve includes a tamper-resistant design to prevent disassembly and allows for re-lubrication while in service. Its plug can rotate 360 degrees, enhancing service flexibility.

Product Information

Standard Information

• Manufacturer: A.Y. McDonald Mfg. Co.
• Model: 560BC

Technical Specifications

• Connection Type: FNPT
• Pressure Rating: 175 PSIG
• Temperature Rating: -20 to 150 DEG F
• Body Material: Cast Iron
• Seal Material: Buna-N/Neoprene Rubber
• Width: 5-5/8 IN
• Height: 5-13/16 IN
• Lead Free: No
