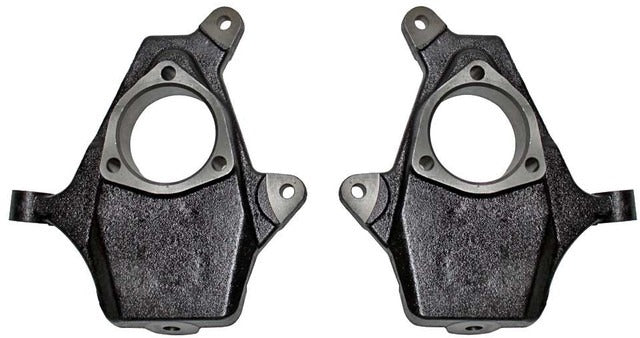

Maxtrac 101320 Front Lowering Spindles 2007-2014 Chevy Suburban

Product Description

The MAXTRAC 101320 is a set of front lowering spindles engineered to drop the front ride height of 2007-2014 Chevrolet Suburban trucks by 2 inches. Built from ductile iron, these spindles are a direct bolt-on replacement for the factory units, requiring no cutting or welding during installation. The 2-inch drop has minimal effect on front-end alignment geometry and preserves factory ride quality, making this a clean, functional solution for achieving a lowered stance on 2WD and 4WD applications.

These spindles are intended for 2007-2014 Chevrolet Suburban 2WD and 4WD trucks. They are commonly paired with a 3-inch or 4-inch rear lowering kit to achieve a level, low-profile stance across the full vehicle. A minimum wheel diameter of 17 inches is required for proper clearance. Vehicles running wheels 20 inches or smaller may require minor trimming at the ball joint bolt area. No separate alignment kit is required after installation.

Key Features

• Ductile iron construction for strength and durability
• 100% bolt-on installation with no cutting or welding required
• Delivers a 2-inch front drop with minimal alignment impact
• Maintains factory ride quality after installation
• No additional alignment products required post-install
• Compatible with both 2WD and 4WD configurations

Compatibility

Designed for 2007-2014 Chevrolet Suburban 2WD and 4WD trucks. Requires 17-inch or larger wheels. Wheels 20 inches or smaller require minor trimming to the ball joint bolt area.

Installation Notes

Installation is performed by a qualified suspension technician. The vehicle must be safely raised, supported on jack stands, and the front suspension fully unloaded before removing the factory spindles. While no realignment kit is required, a professional four-wheel alignment check is recommended after any spindle replacement to confirm caster, camber, and toe are within specification. Consult all applicable vehicle service documentation before beginning work.

Technical Specifications

• Lowering Drop: 2 inches (front)
• Material: Ductile iron
• Installation Type: 100% bolt-on
• Minimum Wheel Size: 17 inches
• Trimming Required: Minor trimming to ball joint bolt for wheels 20 inches or smaller
• Alignment Kit Required: No
• Vehicle Fitment: 2007-2014 Chevrolet Suburban 2WD and 4WD

Standard Information

• Brand: MAXTRAC
• Manufacturer Part Number: 101320
