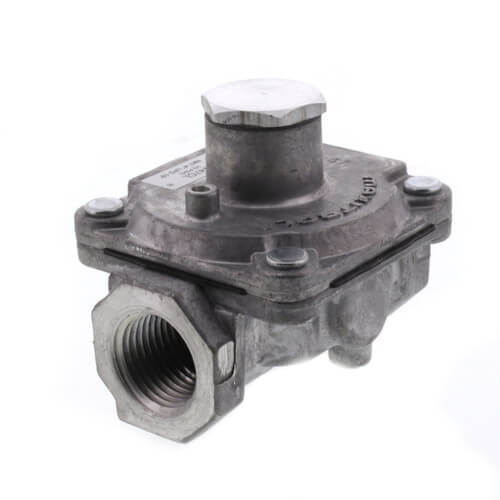

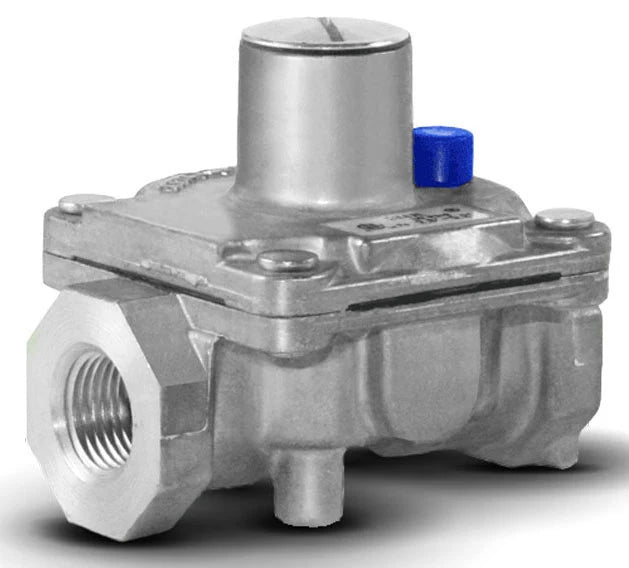

Maxitrol RV47CL-1/2 Gas Pressure Regulator

Product Description

The Maxitrol RV47CL-1/2 gas pressure regulator is designed to provide accurate and reliable gas regulation for natural gas or LP gas. The aluminum body and rubber seat poppet ensure durability and long-term use. This regulator is important for maintaining precise gas pressure in residential and commercial cooking applications.

• Natural and LP Gas Compatible
• Fixed Non-Adjustable Poppet Regulator
• 1/2 PSI Maximum Inlet Pressure

Product Highlights

This gas pressure regulator from Maxitrol is suitable for main burner and pilot load applications, ensuring safety and performance. The integral vent limiting orifice enhances its utility in diverse settings.

Product Information

Standard Information

• Brand: Maxitrol
• MPN: RV47CL-1/2
• Model: RV47CL-44

Technical Specifications

• Body Material: Aluminum
• Seat Material: Rubber
• Temperature Rating: 32 to 225 °F
• Pressure Rating: 1/2 PSI
• Nominal Size: 1/2 inch x 1/2 inch
• End Connection: Threaded x Threaded
• Application: Burner, Pilot Load Residential, Commercial Cooking
• Applicable Standard: ISO7-1, CSA (Canada and US), CE, ANSI Z21.80/CSA 6.3
• Mounting Type: Upright
• Capacity: 60000 BTU/hour at 0.64 Specific Gravity
• Range of Regulation: 125000 BTU/hour (Burner), 90000 BTU/hour (Burner and Pilot)
• Individual Load: 40000 BTU/hour (Fixed Orifice), 125000 BTU/hour (Ball Check Device)
