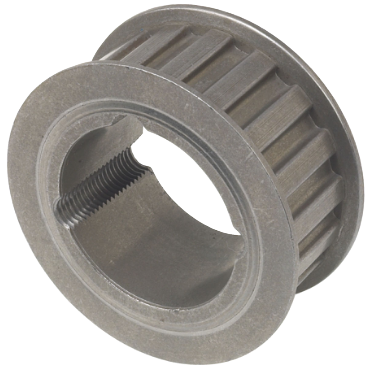

Martin TB24H100 Taperlock Bushed Timing Pulley

Product Description

The Martin TB24H100 is a Taperlock Bushed Timing Pulley designed for secure engagement with timing belts. This pulley has axial grooves for reduced friction and smooth operation. It accommodates belts with a pitch of 0.5 inches and a width of 3 inches, featuring 24 teeth and an outside diameter of 3.766 inches. The Taper-Lock design aids in easy installation and removal. The pulley is crucial for applications that require precise timing and movement.

• Pitch Diameter: 3.82 inches
• Bushing Type: Taper-Lock
• Material: Steel

Product Highlights

This timing pulley offers high durability and efficiency in mechanical systems, making it suitable for a wide range of industrial applications.

Product Information

Standard Information

• Brand: Martin
• MPN: TB24H100

Technical Specifications

• Belt Pitch: 0.5 inches
• No. of Teeth: 24
• Belt Width: 3 inches
• Outside Diameter: 3.766 inches
• Hub Type: A
• Bushing Series: 2012
• Weight: 2.3 lbs
• Length Through Bore: 1 inch
