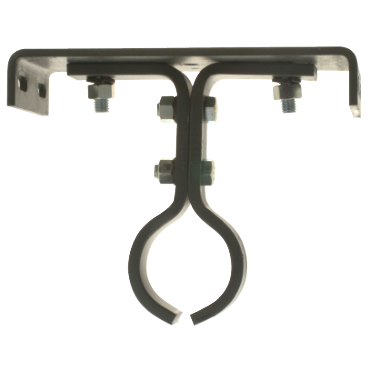

Martin 14CH2266 Screw Conveyor Hangers

Product Description

The Martin 14CH2266 Screw Conveyor Hangers are designed for efficient mounting in conveyor systems. These hangers allow for a flush installation inside the trough, ensuring minimal obstruction of material flow. They are ideal for use in high capacity conveyors, providing durable support. Available with friction-type bearings, these hangers can enhance the performance of your conveyor setup.

• Designed for flush mounting to allow dust-tight operation
• Compatible with fourteen-inch conveyor diameters
• Made with a coupling diameter of three inches

Product Highlights

Martin 14CH2266 hangers enhance conveyor performance with flush mounting and minimal flow obstruction.

Product Information

Standard Information

• Brand: Martin
• Part Number: 14CH2266

Technical Specifications

• Weight: 33.0 LB
• Hanger Type: 226
• Coupling O.D.: 3 in
• Conveyor Diameter: 14 in
• Bolt Hole Width: 15 in
• Bolt Hole Length: 2 1/2 in
• Mounting Distance (Drop): 9 1/4 in
• Oil Pipe: No
• EAN or UPC: 697950096537
