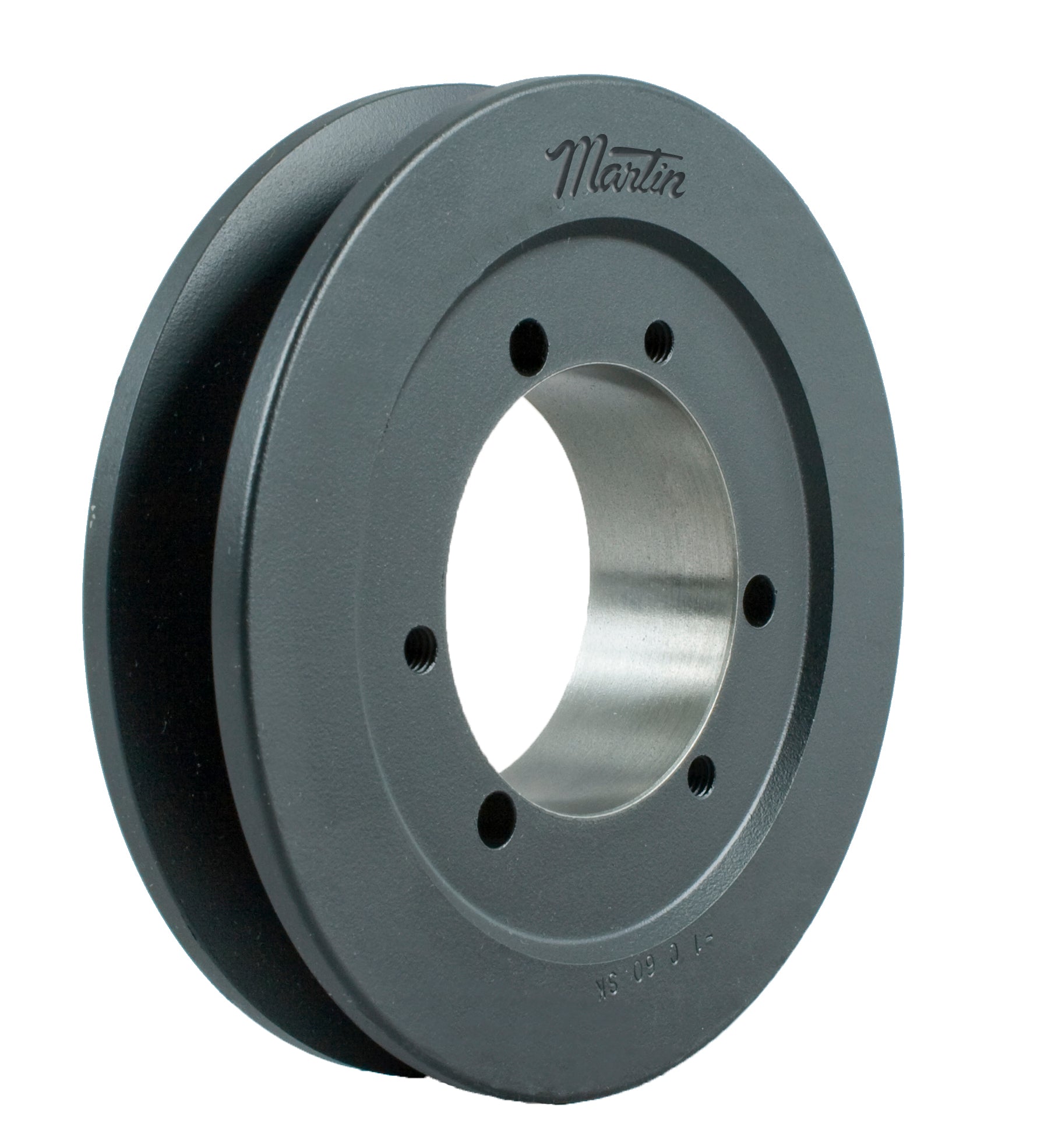

Martin 1 B 54 SDS Solid Type C-1 Single Groove Conventional Sheave QD Bushed Bore

Product Description

The Martin 1B54SDS is a solid type C-1 single groove conventional sheave. It features a QD bush bore that accommodates bore diameters from one-half inch to two inches. The outer diameter measures five and three-fourths inches, while the pitch diameter is five point four inches. With a face width of seven-eighths inch, this sheave is designed for durability and strength.

• Manufactured from class 30 gray iron
• Max speed of six thousand five hundred feet per minute
• For use with A/B cross section belts

Product Highlights

This conventional sheave offers robust performance for various belt drives.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Type: Solid Type C-1

Technical Specifications

• MPN: 1B54SDS
• Bore Diameter: 1/2 to 2 in
• Bore Type: QD Bushed
• Bushing Type: SDS
• Face Width: 7/8 in
• Overall Length: 1-3/8 in
• Pitch Diameter: 5.4 in
• Outside Diameter: 5-3/4 in
