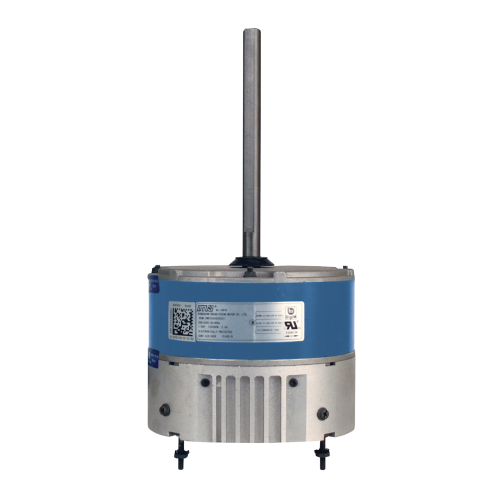

Mars M10874 Azure Digi-Motor 1/3 hp

Product Description

The MARS M10874 Azure Digi-Motor is an electronically controlled motor (ECM) that replaces a multitude of applications. It covers ratings from 1/8 HP to 1/3 HP at 208-230V 825/1075 RPM and is simple to install, connecting like a standard PSC condenser fan motor, but without the capacitor. An outboard surge protector is included with the wiring harness.

• High efficiency ECM technology
• No capacitor required
• Water slinger on shaft
• Multi-horsepower self-adjusting

Product Highlights

ECM motor that replaces multiple PSC motors, no capacitor needed, and multi-horsepower self-adjusting.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10874

Technical Specifications

• Application Type: Condenser Fan Motors
• Bearing Type: Ball
• Enclosure Type: Air Over
• Frame: 48
• Frequency Rating: 50/60 Hz
• Horsepower: 1/3 hp
• Insulation Class: Class B
• Mounting Type: Stud
• Number of Speeds: 1
• Phase: 1
• Rotation: CW/CCW
• Shaft Size: 1/2 in Dia x 6-1/2 in L
• Special Features: ECM Motors
• Speed: 825/1075 rpm
• Temperature Rating: -32 to 55 deg C
• Voltage Rating: 230 V AC
