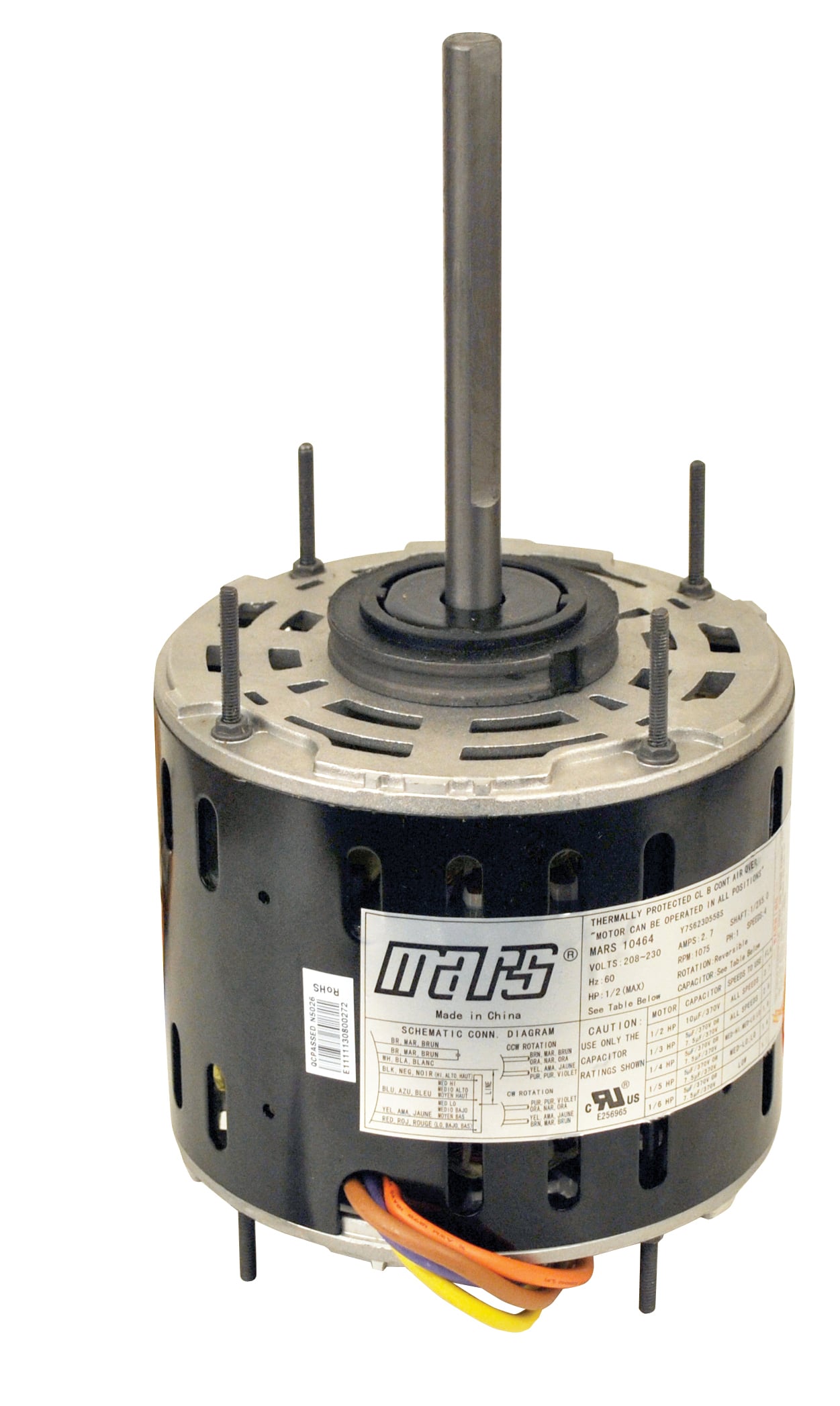

Mars M10467 Direct Drive Multi-Hp 1/5-3/4 Multi Hp 230V

Product Description

The MARS M10467 direct drive multi-horsepower motor is designed for various applications. This motor features Rheem mounting holes with screws installed and operates at 4 speeds. It is a single-phase motor with sleeve bearings and includes torsion mount sleeves and grommets. Ideal for truck stock, this motor covers 208-230 volt applications from 1/6 through 3/4 HP.

• Multi-Horsepower Direct Drive Motor
• Rheem mounting holes with screws installed
• 4 Speed
• Single Phase, Sleeve Bearing
• Torsion mount sleeves & grommets included

Product Highlights

Multi-horsepower direct drive motor with Rheem mounting, 4 speeds, and single-phase operation. Includes sleeves and grommets.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10467

Technical Specifications

• Amperage Rating: 4.2 A Full Load
• Application Type: Fan & Blower Motors
• Bearing Type: Ball
• Enclosure Type: OAO
• Frame: 48
• Frequency Rating: 60 Hz
• Horsepower: 3/4 hp
• Insulation Class: Class B
• Mounting Type: All Angle
• Number of Speeds: 4
• Phase: 1
• Rotation: Reversible
• Shaft Size: 0.5 in Dia x 5.6 in L
• Speed: 1075 rpm
• Temperature Rating: 60 deg C
• Voltage Rating: 208 to 230 V AC
