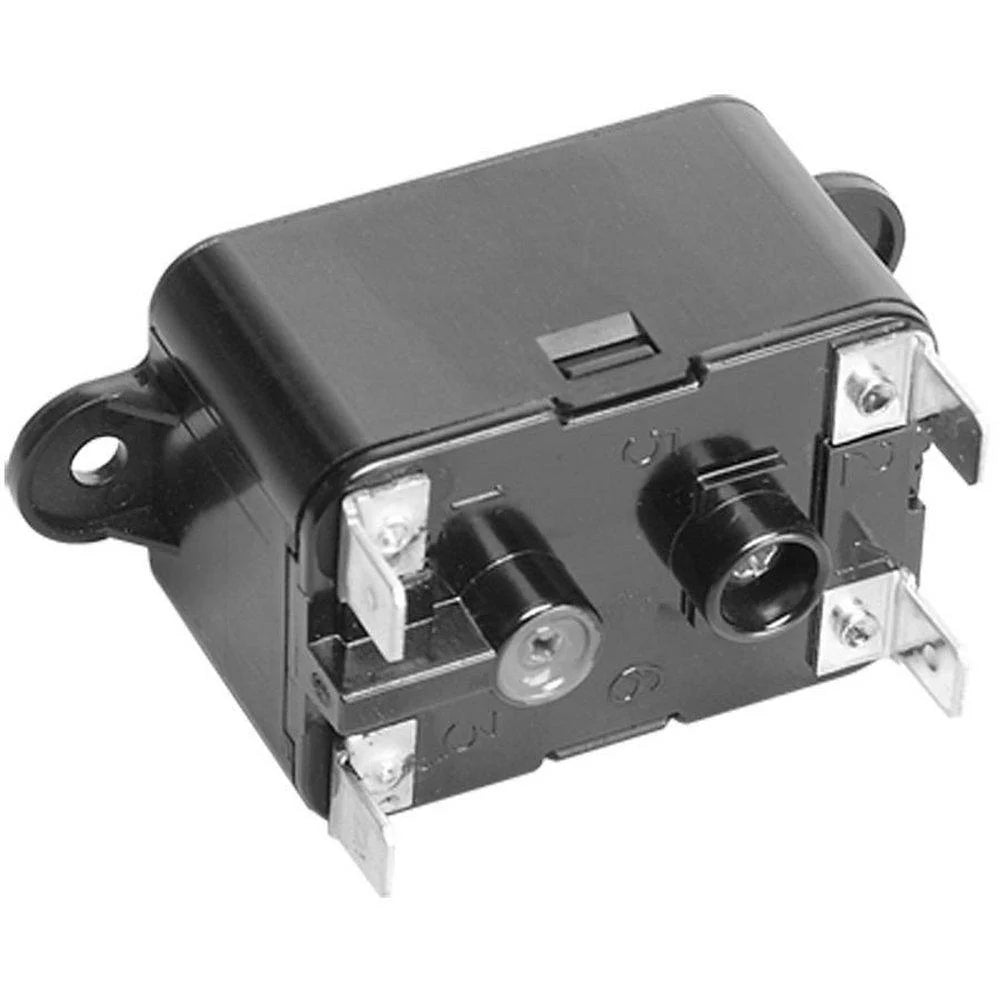

MARS 90360 SPST 24V Relay Heavy Duty Fan with Flange Mount

Product Description

The MARS 90360 SPST 24V Relay offers robust performance for electrical applications, featuring a heavy-duty fan relay equipped with a flange mount. Ideal for use in air conditioning, heating, and refrigeration systems, this relay is constructed to ensure reliability and longevity.

• Universal mounting bracket for easy installation
• Equipped with 1/4 inch quick-connect terminals for speedy connection
• Included instructions and cross-reference for user convenience

Product Highlights

This SPST (Single-Pole Single-Throw) relay operates at 24VAC, designed for continuous heavy-duty use. It replaces WR/Essex/RBM type 184 and is rated for 18A and 60 Hz, ensuring it handles significant electrical loads.

Product Information

Standard Information

• Manufacturer: MARS
• Part Number: 90360
• CSA Certified
• UL Listed

Technical Specifications

• Coil Voltage: 24 VAC
• Voltage Rating: 20.4 VAC Pick-Up, 4.8 VAC Drop Out
• Amperage: 18 A
• Frequency: 60 Hz
• Contact Configuration: SPST
• Mounting Type: Flange
• Terminal Type: 1/4 inch Quick Connect
