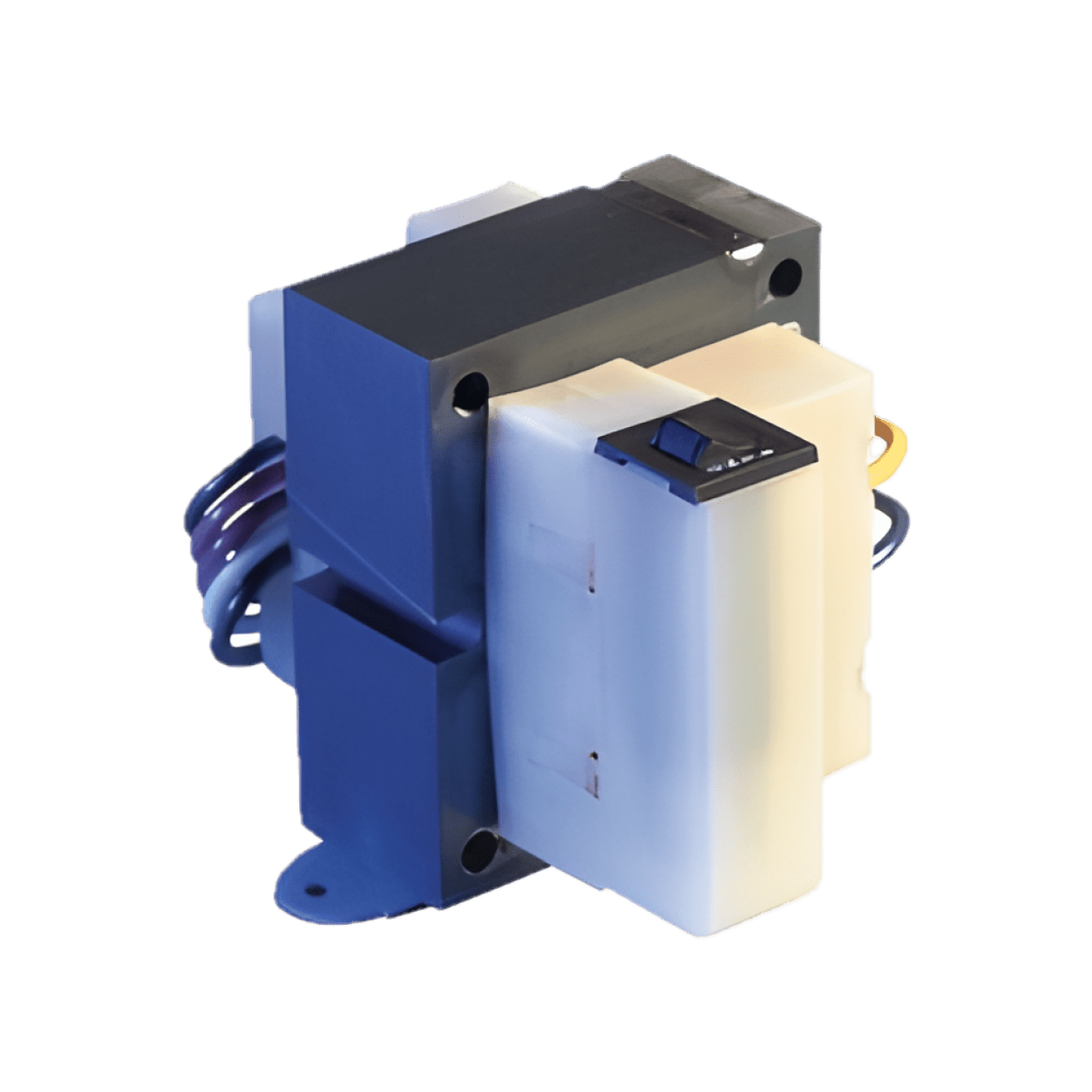

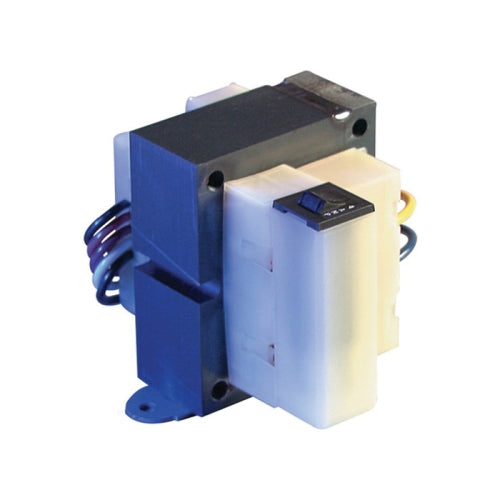

MARS 50375 Mars 75 VA 120 - 575V Class 2 Power Control Transformer with Manual Reset

Product Description

The MARS Motors and Armatures 50375 is a power control transformer designed for various applications including control circuits, air conditioning, and refrigeration systems. This Class 2 transformer operates with primary voltages of 120/208/240/575V and provides a secondary voltage of 24V. The device features color-coded wire leads for easy connection and is mounted using a foot.

• Compact design
• Rated for 75 VA power
• UL5085 listed for safety compliance

Product Highlights

The MARS 50375 transformer is suitable for HVAC and heating applications, ensuring reliable power supply for control circuits.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Part Number: mars50375

Technical Specifications

• Type: Power, Class 2
• Primary Voltage: 120/208/240/575V
• Secondary Voltage: 24V
• Frequency Rating: 50/60 Hz
• Phase: 1
• Connection: Color Coded Wire Leads
• Mounting: Foot
• Width: 3.543 inches
• Height: 3.071 inches
• Power Rating: 75 VA
• Construction: Open
• Reset Type: Manual
• Applications: For providing power source for control circuit, air conditioning, heating, or refrigeration systems
