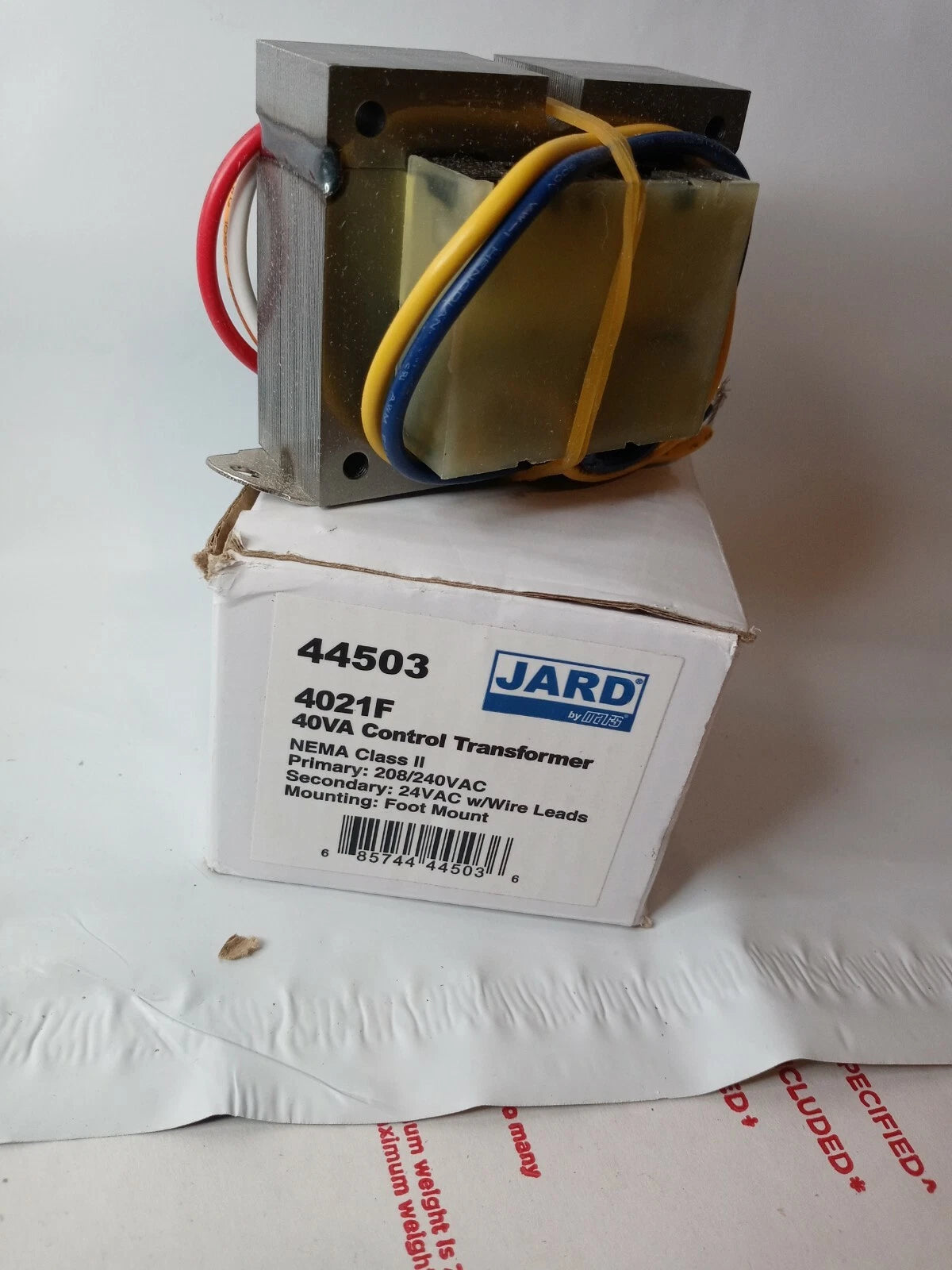

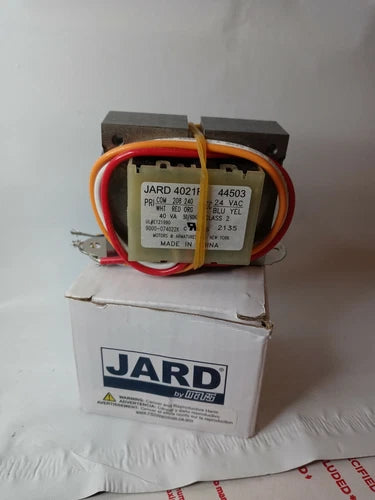

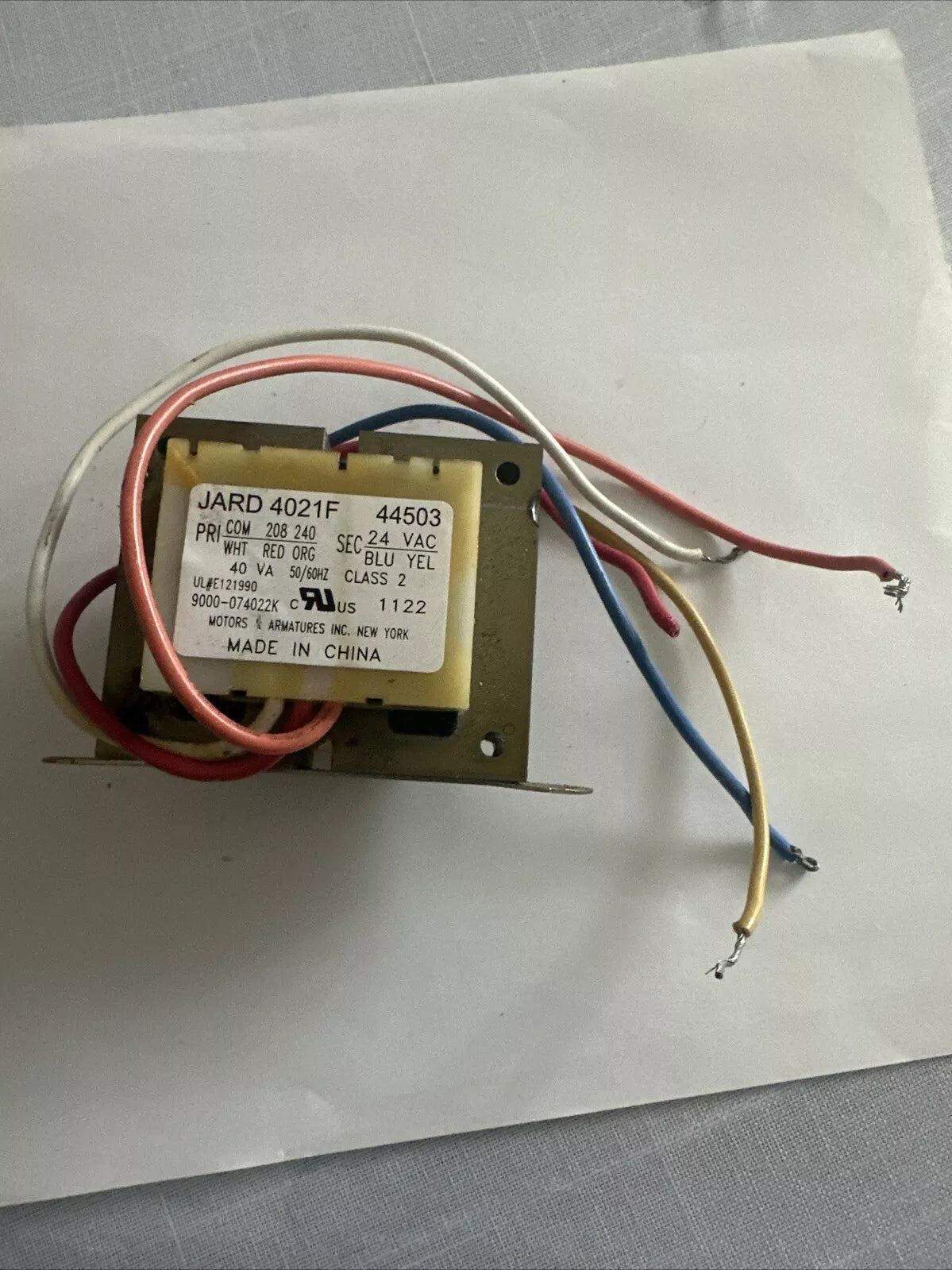

MARS 44503 Control Transformer 40VA (Gray)

Product Description

The MARS 44503 is a control transformer suitable for electrical circuits. This Class 2 transformer has a turns ratio of 2:40 and operates in a single-phase system. It weighs one point five pounds and has a height of two point two four four inches. The device is designed to handle a primary voltage of 208/240 VAC and outputs a secondary voltage of 24 VAC.

• Power rating of 40VA suitable for control circuit applications.
• Accepts primary voltage input of 208/240 VAC.
• Outputs a secondary voltage of 24 VAC.

Product Highlights

This transformer supports applications in control circuits, ensuring reliable voltage conversion.

Product Information

Standard Information

• Brand: MARS
• Type: Class 2 Transformer

Technical Specifications

• Electrical Voltage: 24 Volt
• Weight: 1.50 lbs
• Power Rating: 40 VA
• Secondary Voltage Rating (DC): 24 V
• Termination Style: Wire Lead
• Color: Gray
• Minimum Operating Frequency: 50 Hz
• Turns Ratio: 2:40
• Secondary Voltage Rating (AC): 24 V
• Number of Phases: 1
• Series: 162
• Primary Voltage Rating (AC): 208/240 V
• Maximum Operating Frequency: 60 Hz
• Item Height: 2.244 in
