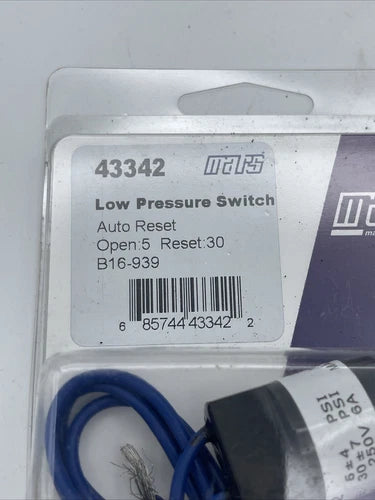

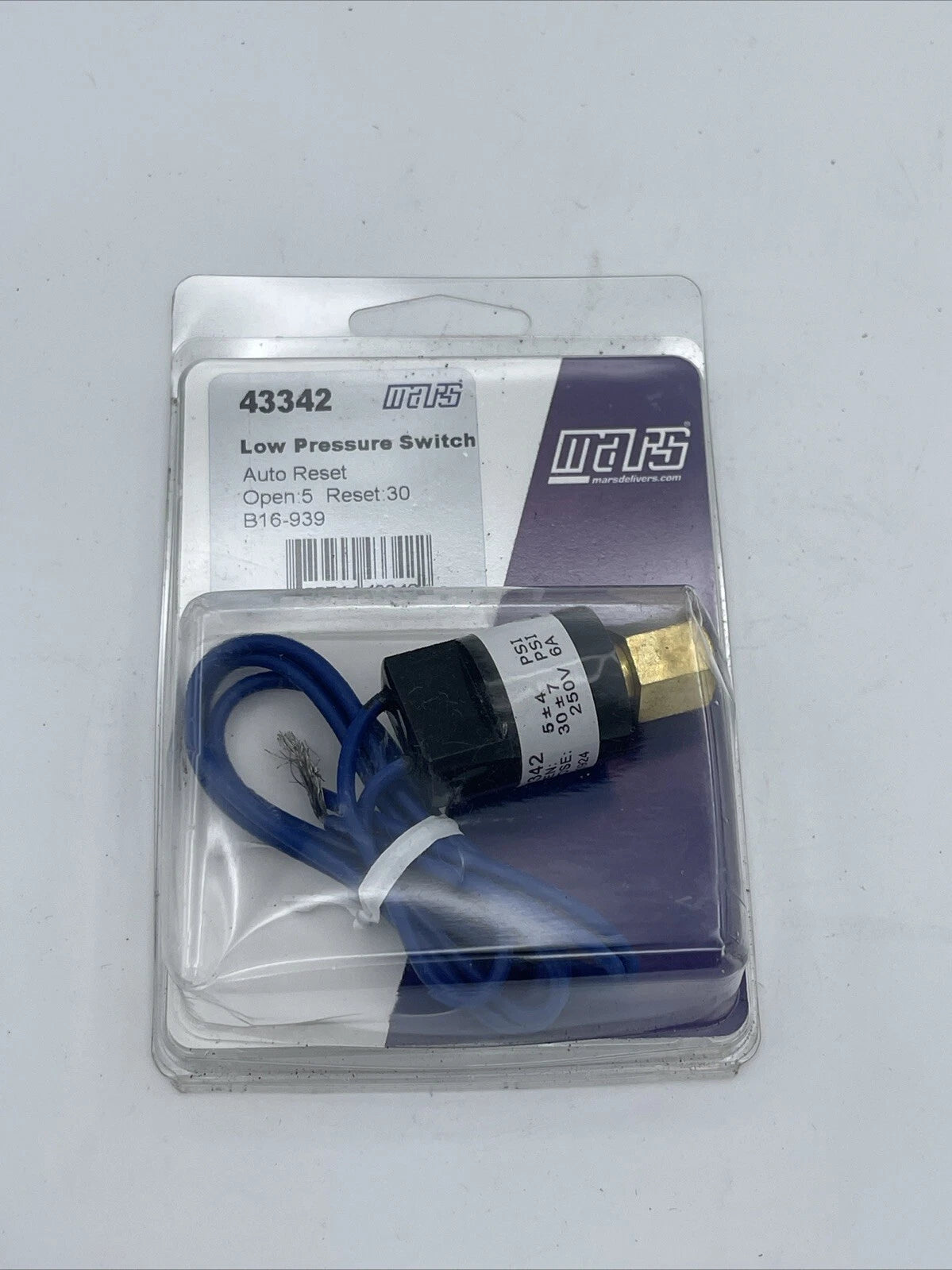

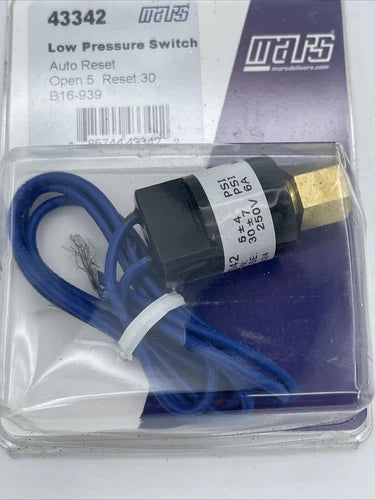

MARS 43342 Low Pressure Switch

Product Description

The MARS 43342 is a low pressure switch designed for residential air conditioning and commercial refrigeration systems. This switch automatically resets at 30 PSI and opens on a pressure drop of 5 PSI. It features a 1/4 Female Flare S.A.E. fitting for easy mounting and has 18 leads for secure electrical connection.

• Opens at a pressure drop of 5 PSI, resets at 30 PSI
• Constructed with a hermetically sealed sensor
• Meets RoHS standards, compatible with R-410A refrigerant

Product Highlights

The MARS 43342 switch is designed for durability and ease of use with a compact, tamper-proof structure allowing for direct mounting.

Product Information

Standard Information

• Brand: MARS
• MPN: 43342

Technical Specifications

• Pressure Type: Switch
• Application: Low Pressure
• Connection: 18 Leads
• Connection Size: 1/4 SAE Female Flare Fitting
• Cut-In PSI: 30
• Cutout PSI: 5
• Electrical Rating: 24 - 240V
• Shipping Weight: 0.15 lbs
• Shipping Dimensions: 4.00 inches x 6.00 inches x 0.10 inches
