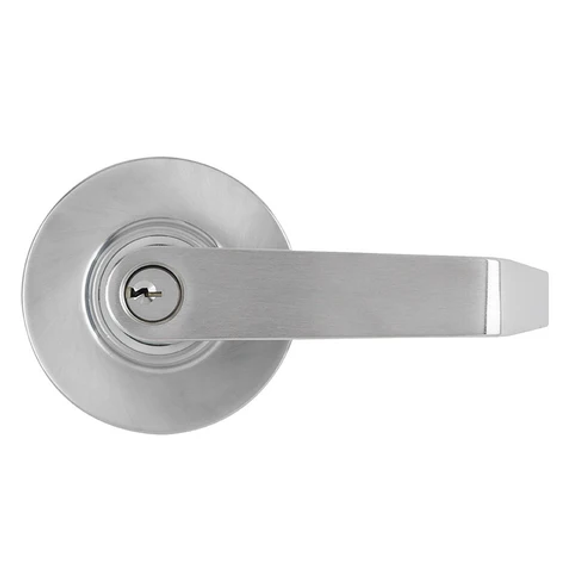

Marks Hardware M195S/26D Lever/Rose Entry Exit Device Trim

Product Description

The Marks Hardware M195S/26D is an exit device trim designed for M9900 series exit devices. This entry function device features an American lever with a rose, suitable for various commercial and industrial settings.

• Grade 1 M9900 Exit Bar Trim
• Non-handed design for easy installation
• Solid cast Zamac lever with a half inch return

Product Highlights

This device is built for strength and reliability, meeting ANSI/BHMA Grade 1 standards.

Product Information

Standard Information

• Trim Function: Entry
• Finish: Satin Chrome

Technical Specifications

• Levers: Solid cast Zamac, with half inch return
• Roses: Thru-bolted, 3-7/16 inch spring loaded roses
• Door Thickness: 1-5/8 inch – 1-7/8 inch
• Chassis: Steel
• Cylinder: Marks “C” keyway, 6 pin with 2 keys
• Lock Function: ANSI F81 Entry
• Certifications: Meets ANSI/BHMA Grade 1 requirements, UL Listed 3-hour fire rating
• Manufacturer Warranty: Marks lifetime mechanical warranty
