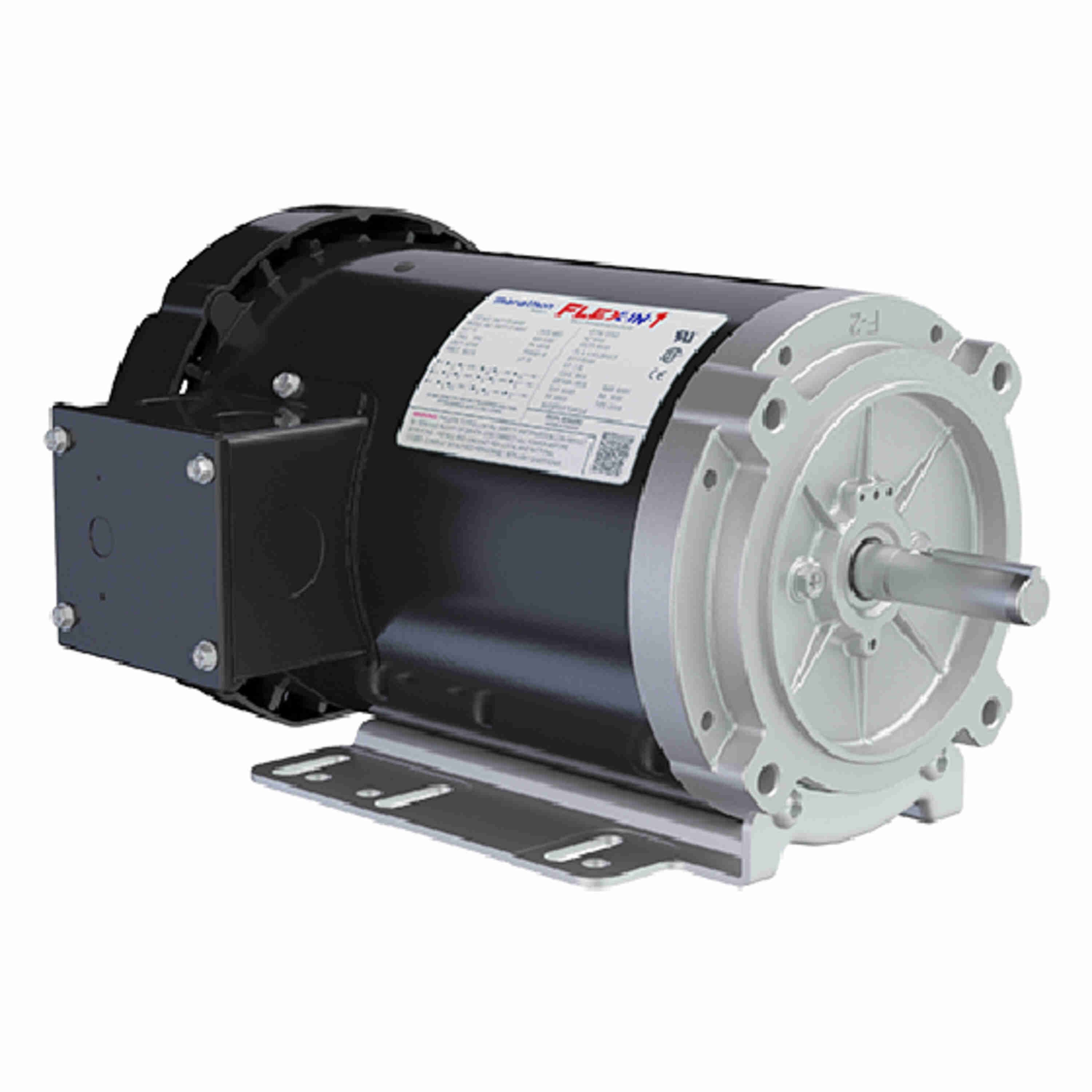

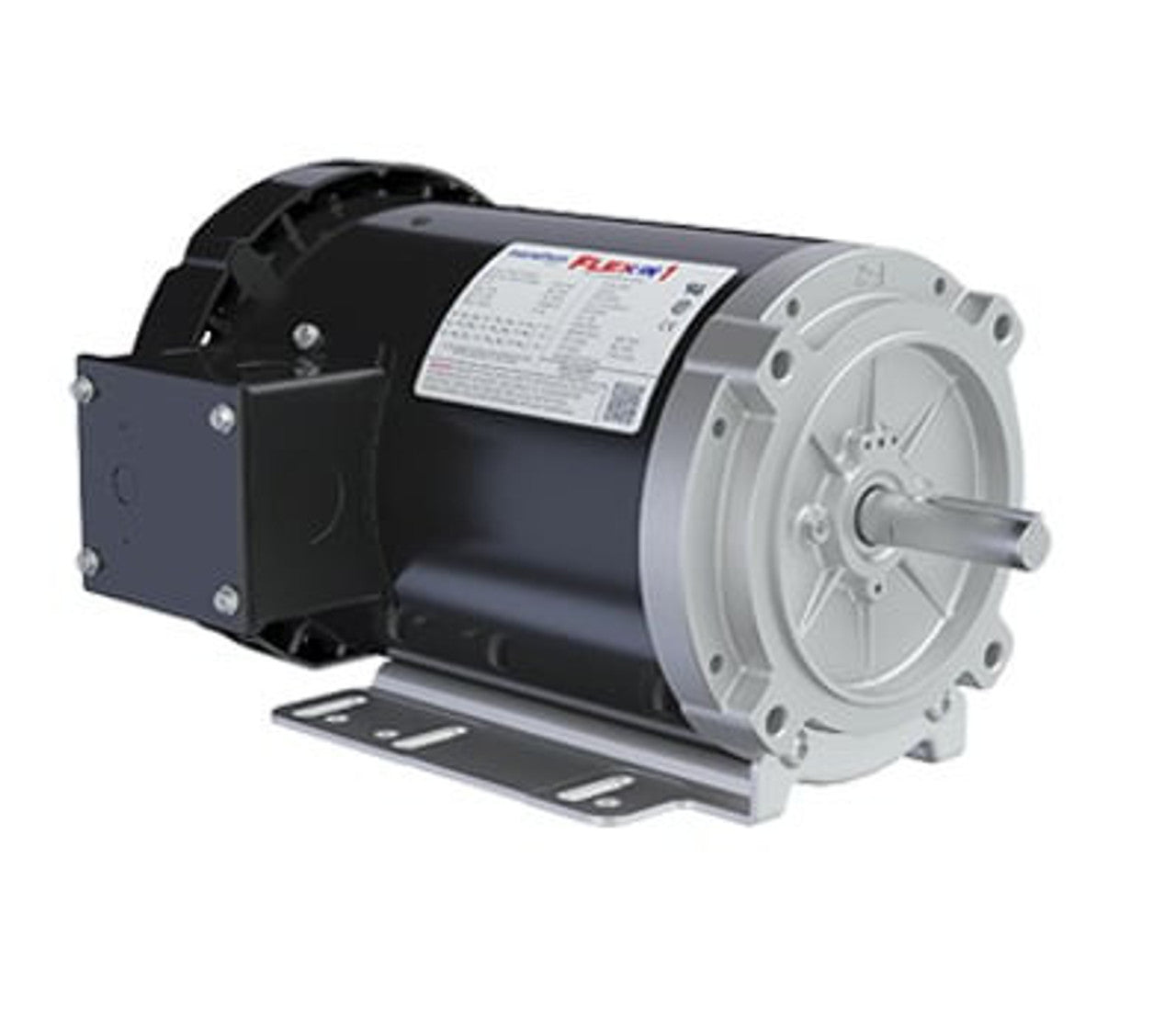

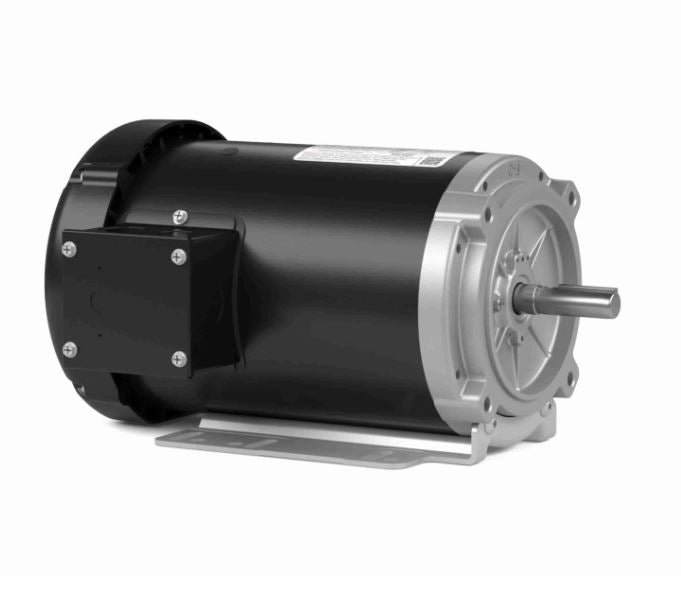

Marathon Motors FX34BK006 Electric Motor

Product Description

The Marathon Motors FX34BK006 is a three-phase electric motor suitable for general-purpose applications. It is ideal for use in clean and dry environments, making it a good choice for tasks like running gear reducers, pumps, and machine tools. This motor features a totally enclosed fan-cooled enclosure to ensure its reliability and longevity during continuous operation. The inverter duty capability allows it to operate efficiently with a 10:1 constant torque for TEFC, enhancing its versatility across various applications.

• Three-phase AC induction motor.
• TEFC (Totally Enclosed Fan Cooled) enclosure.
• FLEX-IN-1 design for multiple mounting styles.

Product Highlights

This motor is designed for performance and reliability in demanding conditions, featuring a robust cooling system and flexible mounting options.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: FX34BK006

Technical Specifications

• Rated Load (HP): 3/4
• Output HP: 3/4
• Output KW: 0.55
• Base RPM: 1200
• Output RPM: 1140
• Nominal Rated Input Voltage: 230 V, 460 V
• Input Voltage: 208-230/460V AC
• AC Frequency Rating: 60 Hz
• Full Load Amps: 3.1-3.3/1.6
• AC Phase: Three Phase
• Enclosure Type: TEFC
• Insulation Class: F
• Shaft Diameter: 5/8 inches
• Frame Size NEMA: 56HC
• Mounting Type: Base-Mounted, Face-Mounted, Foot-Mounted
• Motor Design: 3-Phase
• Motor Shaft Rotation: CCW
• Overall Length: 12-1/16 inches
• Shaft Length: 1-7/8 inches
• Max. Ambient Temp.: 40 Degrees C
