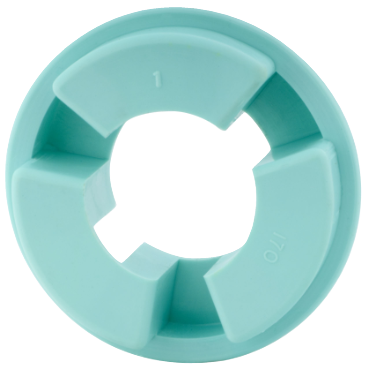

Magnaloy M670H5 Flexible Coupling Insert

Product Description

The Magnaloy M670H5 is a Flexible Coupling Insert designed for various horsepower and RPM requirements. This insert is made from Hytrel, which provides strength and durability. Select the appropriate coupler size, shaft diameter, and keyway size required for your application. This product is compatible with Magnaloy coupling halves.

• Lightweight magnesium construction
• High-performance under heavy-duty conditions
• Wide temperature range from -65°F to 300°F

Product Highlights

The Magnaloy M670H5 offers a unique combination of lightweight properties and heavy-duty performance. Suitable for various industrial applications, it ensures excellent fluid compatibility and maintains physical integrity under extreme conditions.

Product Information

Standard Information

• Material: Hytrel
• Coupling Size: 600

Technical Specifications

• Temperature Range [Min]: -65°F
• Temperature Range [Max]: 300°F
• Torque Rating: 14840.1 in lb
• No. of Legs: 6
• Hardness: 50
• HP @ RPM: 23.7 hp @ 100 rpm, 284.9 hp @ 1200 rpm, 427.4 hp @ 1800 rpm
• Color: Blue/Green
• Insert Style: One Piece
• Weight: 1.9 LB
