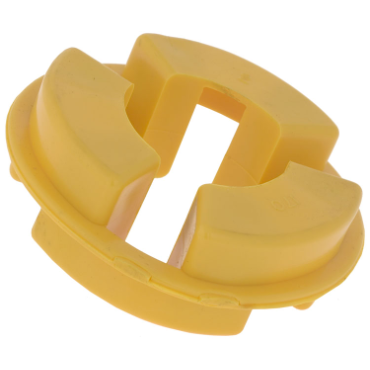

Magnaloy Coupling Co. P097U9 Flexible Coupling Insert

Product Description

The Magnaloy Coupling Co. P097U9 is designed to meet flexible coupling needs. This coupling insert is suitable for various horsepower and rpm requirements. The insert, made from urethane, offers reliability in different conditions.

• Coupler size selection based on horsepower and rpm.
• Constructed from lightweight urethane for durability.
• Inserts can be ordered separately from coupling halves.

Product Highlights

Lightweight construction combined with durability makes the Magnaloy P097U9 an ideal solution for flexible drive systems.

Product Information

Standard Information

• Brand: Magnaloy Coupling Co.
• Part #: 100440032

Technical Specifications

• Coupling Size: 090
• Hardness: 90
• Material: Urethane Spider
• Outside Diameter: 2.125 inches
• Temperature Range (Max): 150 °F
• Temperature Range (Min): -30 °F
• Color: Yellow
• Torque Rating: 336 in lb
• Insert Style: One Piece
• Number of Legs: 3
• HP @ RPM: 0.54 hp @ 100 rpm
• Weight: 0.8 lb
