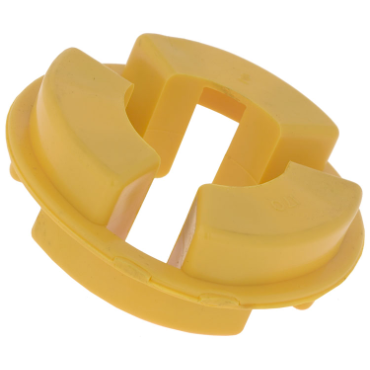

Magnaloy Coupling Co. M370U9 Flexible Coupling Insert

Product Description

The Magnaloy Coupling Co. M370U9 is a flexible coupling insert designed for a variety of applications. This insert allows for easy selection of coupler size based on horsepower and rpm requirements. The shaft diameter and keyway size can be chosen based on your needs. This insert is compatible with separate coupling halves for better customization.

• Lightweight construction reduces overall weight by up to seventy-six percent compared to cast iron.
• Good durability provides reliable performance in medium-duty applications.
• Temperature range between minus thirty degrees Fahrenheit and one hundred fifty degrees Fahrenheit ensures functionality in diverse environments.

Product Highlights

This product features exceptional mechanical and physical properties, offering a durable solution for flexible coupling needs.

Product Information

Standard Information

• Brand: Magnaloy Coupling Co.
• Part Number: 100439737

Technical Specifications

• HP @ 100 rpm: 1.68 hp
• Torque Rating: 1052.1 in lb
• Color: Yellow
• Temperature Range (Min): -30 degrees Fahrenheit
• Hardness: 90
• Coupling Size: 300
• Bore Size (Max): 1.625 in
• Temperature Range (Max): 150 degrees Fahrenheit
• HP @ 1200 rpm: 20.2 hp
• HP @ 1800 rpm: 30.3 hp
• Material: Urethane
• Weight: 1.0 lb
