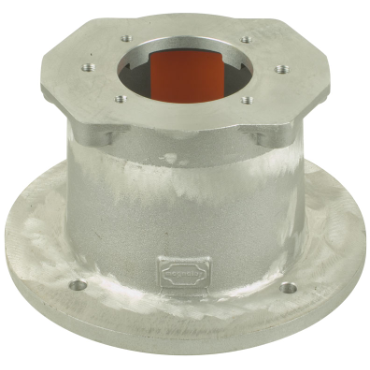

Magnaloy Coupling Co. M324762C Horizontal Pump/Motor Mount Adapter

Product Description

The Magnaloy Coupling Co. M324762C Horizontal Pump/Motor Mount Adapter is designed to ensure proper alignment between hydraulic pumps and electric motors. This adapter is made from machined aluminum, providing durability and reliability in various applications.

• Constructed from lightweight aluminum
• Compatible with SAE C pump flange
• Mounts horizontally for ease of installation

Product Highlights

Ideal for industries that require efficient pump and motor alignment, this adapter meets the specifications reliably.

Product Information

Standard Information

• Brand: Magnaloy Coupling Co.
• Part Number: 100439728

Technical Specifications

• Pump Flange Type: SAE
• Motor Frame: 324TC/TSC-405TC/TSC, 324UC/USC-405UC/USC
• Motor Mount Holes: 4
• Mounting Type: Horizontal
• Axial Clearance: 6 3/4 inches
• Pump/Motor Mount Length: 7 5/8 inches
• Radial Clearance: 7.74 inches
• Material: Aluminum
• Pump Flange: SAE C
• Weight: 16.0 lb
