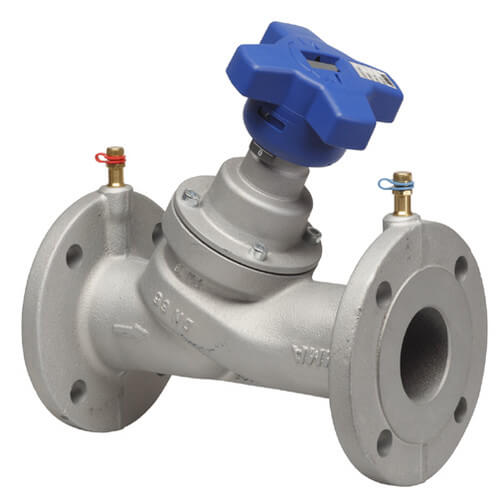

Macon Balancing MB-STVA-6 6 Flanged STVA Balancing Valve

Product Description

Macon Balancing MB-STVA-6 is a 6 inch flanged balancing valve. This valve delivers an efficient solution for measuring and balancing flow rates in heating and cooling systems. It helps to reduce maintenance needs, enhance comfort, and promote lower energy usage.

• Y pattern, globe style design for enhanced accuracy
• Multi-turn, 360-degree handwheel with vernier scale and digital readout
• Self-sealing pressure and temperature ports

Product Highlights

This balancing valve is designed for flow measurement, flow balancing, and positive shutoff.

Product Information

Standard Information

• Brand: Macon Balancing
• Category: Macon Balancing Valves

Technical Specifications

• Size: 6 inches
• Material: Cast Iron
• Connection Type: Flanged x Flanged
• Max Operating Temperature: 250 degrees Fahrenheit
• Max Pressure: 250 PSI
• Min Operating Temperature: -14 degrees Fahrenheit
• Weight: 110.2 pounds
• Shipping Dimensions: 18.9 inches (Depth) x 18 inches (Width) x 12.05 inches (Height)
