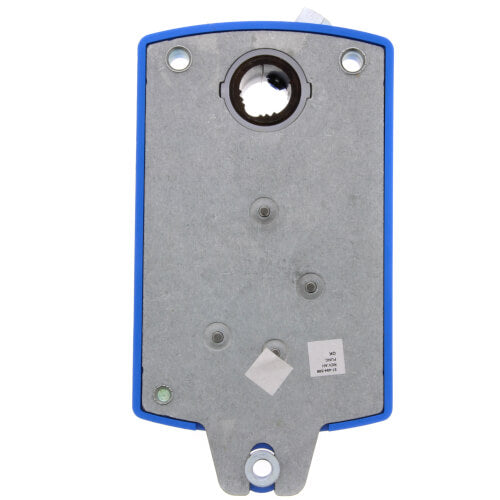

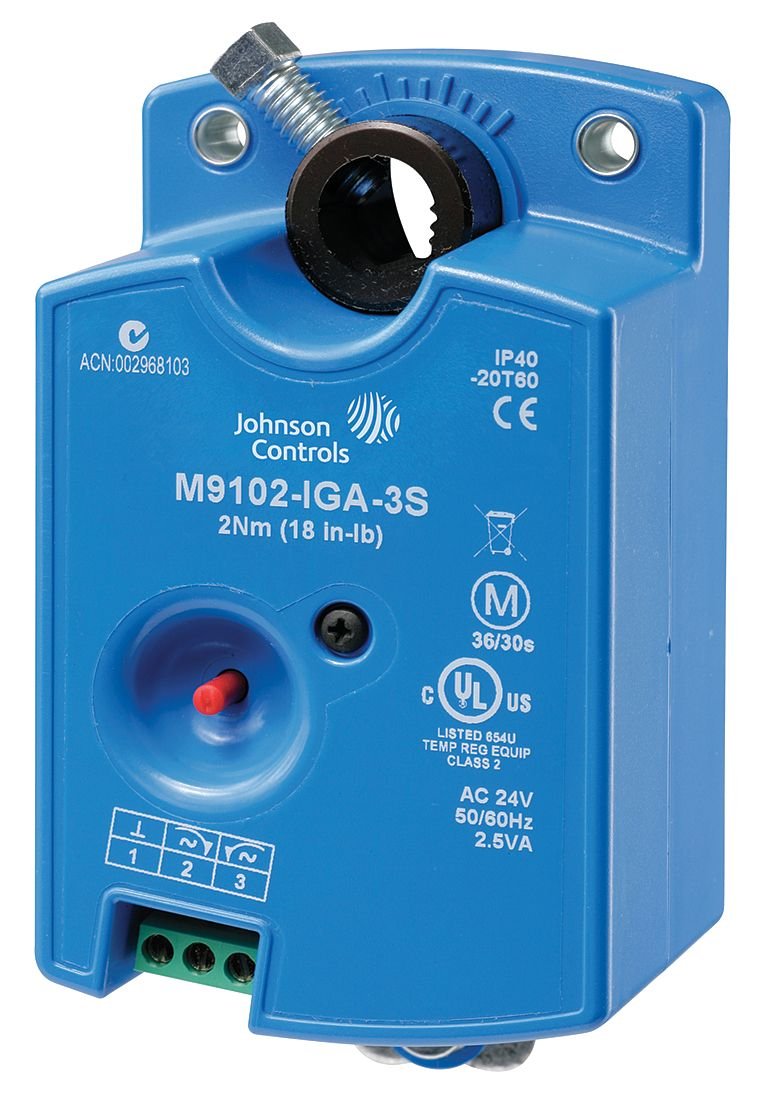

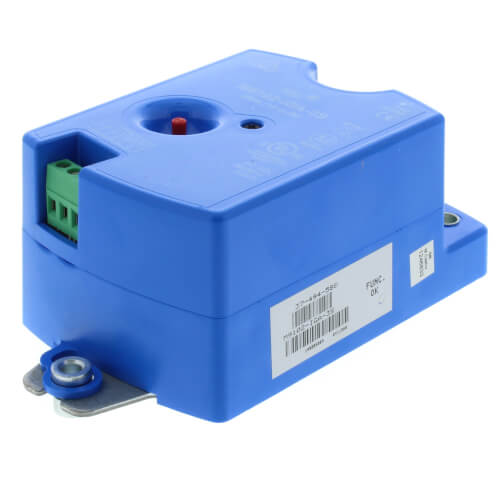

Johnson Controls M9102-IGA-3S Electric Damper Actuator Non-Spring Return 18 Torque 24VAC

Product Description

The Johnson Controls M9102-IGA-3S Electric Damper Actuator is engineered for reliable operation in HVAC applications. Designed for direct mounting, this device simplifies installation and enhances system efficiency.

• On/Off and floating control inputs adjust operational modes seamlessly.
• Quiet operation with a noise rating of only 35 dB.
• Features a robust torque output of 18 lb.-in for effective performance.

Product Highlights

This damper actuator offers a rotation range up to 93 degrees, compatible with both clockwise and counterclockwise operations. Its compact structure ensures it fits in tight spaces and it's equipped with a manual gear release for easy adjustments. The actuator can handle varying electrical inputs of 24VAC, suitable for most industrial setups.

Product Information

Standard Information

• Motor Type: Brushless synchronous drive motor
• Installation: Features universal adapter for shafts ranging from 3/8 to <1/2 inch

Technical Specifications

• Electrical Input: 24VAC, 50/60 Hz
• Torque: 18 lb-in
• Control Signal: On/Off, floating and proportional
• Noise Level: 35 dB
• Rotation: 93 degrees CW or CCW
