Lux PSDH121 Non-Programmable Thermostat 24 VAC 2 Heat/1 Cool Heat Pump

Product Description

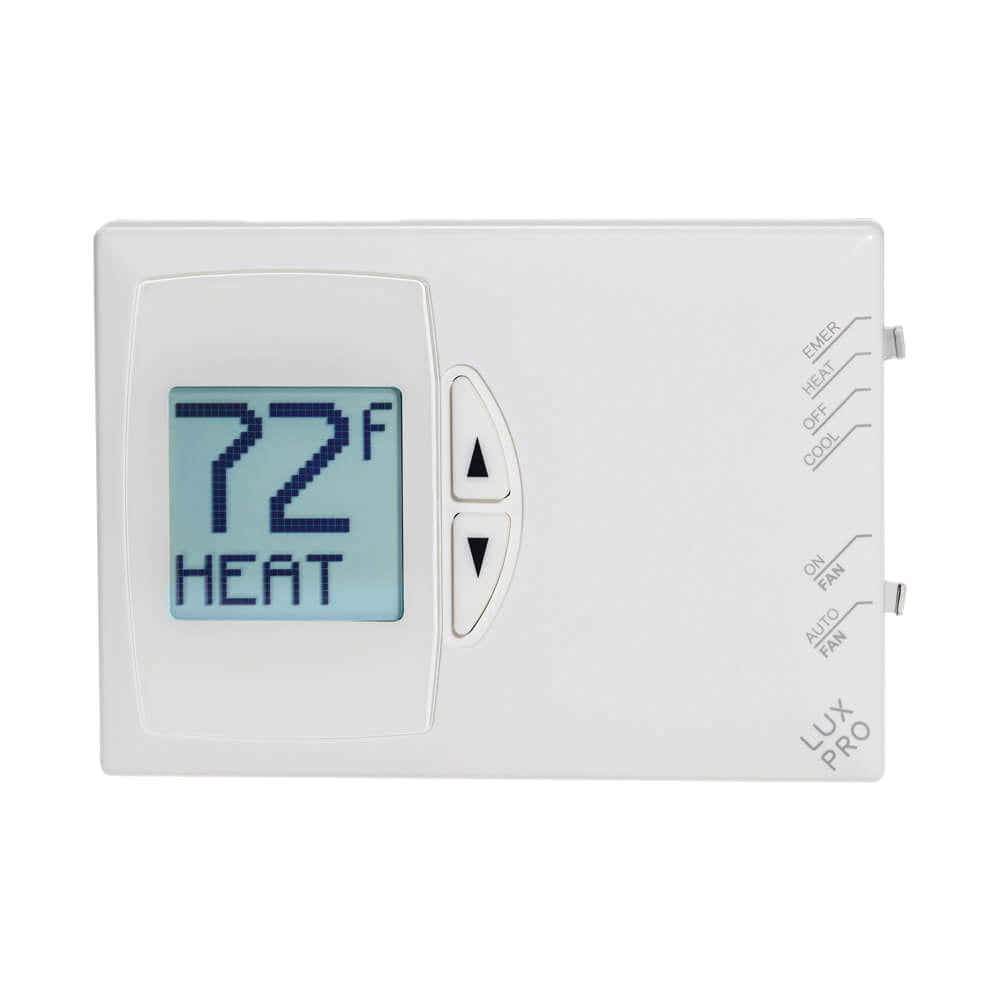

The Lux PSDH121 Non-Programmable Thermostat is designed for 24 VAC systems, offering 2 Heat/1 Cool Heat Pump functionality. This thermostat can be mounted vertically or horizontally, providing flexibility in installation. It features an easy-to-read backlight display and supports both Fahrenheit and Celsius temperature settings. Dual powered by batteries or hardwired, this thermostat is suitable for various applications.

• Easy installation and setup
• Horizontal or vertical mount options
• Supports 24 VAC systems

Product Highlights

The Lux PSDH121 is a reliable choice for managing your HVAC system, designed for both single and multi-stage heat pump systems. With adjustable compressor delay and emergency heat mode, it ensures optimal performance and energy efficiency.

Product Information

Standard Information

• Brand: Lux
• MPN: PSDH121
• Category: HVAC, Thermostats

Technical Specifications

• Accuracy: Plus/Minus 1 deg F at 50 - 90 deg F
• Amperage Rating: 1.5 A
• Differential Temperature: 0.25 - 2.25 deg F
• Dimension: 4-5/8 in W x 3-1/4 in H x 7/8 in D
• Display Type: Large Backlight
• Humidity Rating: 20 - 90% Non-Condensing
• Mounting: Horizontal
• Power Source: Battery/Hardwired
• Programmability: Non-Programmable
• Setting Temperature: 45 - 90 deg F
• Stages: 2 Heat/1 Cool Heat Pump
• Temperature Rating: 32 - 95 deg F
• Terminal Designation: E, Y, B, O, W2, R, G, C
• Voltage Rating: 24 VAC
