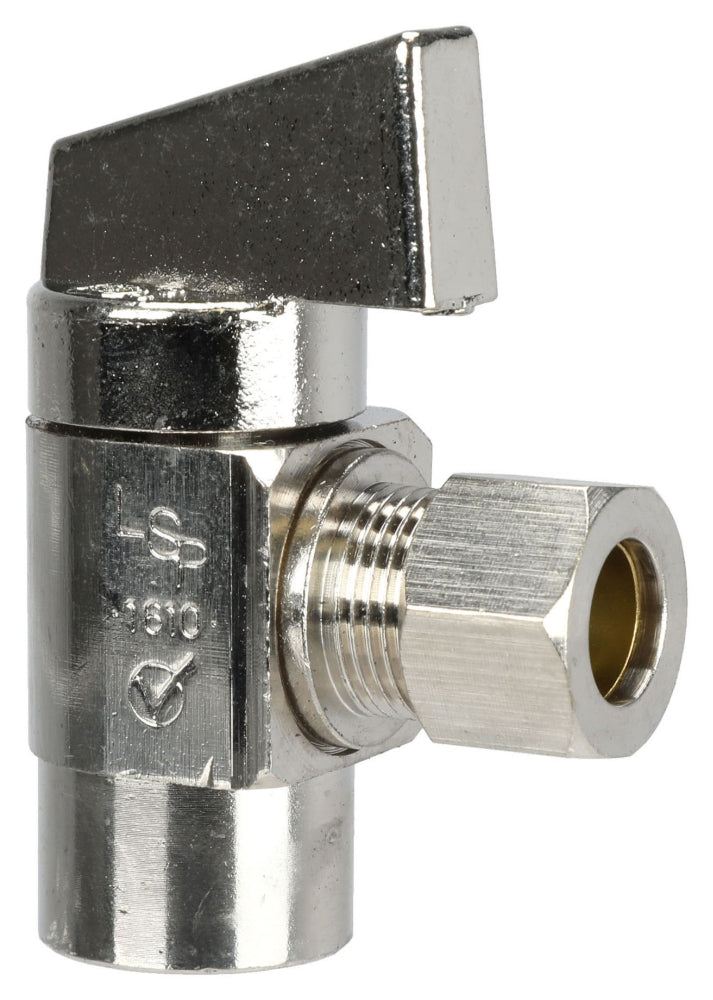

LSP Aqua-Flow V-101-A-LL Angle Ball Valve 5/8 x 3/8

Product Description

The LSP Aqua-Flow V-101-A-LL is an angle ball valve designed for effective flow control. It features a 1/4-turn design for quick shut-off and provides reliable performance in various applications.

• Quick and easy 1/4-turn shut-off
• Heavy-duty nickel plated brass construction
• Lead-free and compliant with NSF/ANSI 61

Product Highlights

This valve is suitable for a wide range of plumbing systems, maintaining a temperature rating between forty to one hundred sixty degrees Fahrenheit. It has a pressure rating of twenty to one hundred twenty-five PSI, making it ideal for both residential and commercial uses.

Product Information

Standard Information

• Manufacturer: LSP
• UPC: 671436243868

Technical Specifications

• Type: Angle Ball Valve
• Nominal Size: 5/8 inch x 3/8 inch
• End Connection: Compression x Compression
• Temperature Rating: 40 to 160 Degrees Fahrenheit
• Pressure Rating: 20 to 125 PSI
• Construction: Lead-Free Nickel Plated Brass
• Features: Non-Stick Seat
• Applicable Standard: NSF/ANSI 61
