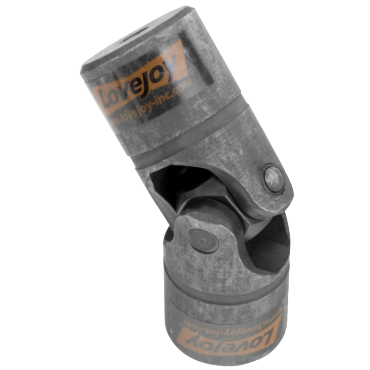

Lovejoy D5SOLID D Type Solid Universal Joint

Product Description

The Lovejoy D5SOLID is a D Type Solid Universal Joint designed for various industrial applications. This universal joint features a pin and block design, providing durability and reliability in high-demand environments. The yoke shape maximizes strength while allowing full, free movement. It is suitable for high horsepower applications, accommodating speeds up to 1,750 RPM.

• Solid type bore design
• Bore diameter of 0.44 inches
• D5 coupling size

Product Highlights

The D5SOLID joint is an optimal choice for engineers and technicians working in mechanical industries. Its robust construction ensures long-lasting performance in various conditions.

Product Information

Standard Information

• Brand: Lovejoy
• Part #: 102145801

Technical Specifications

• Nominal Size: 0.44 inches
• Coupling Size: D5
• Outside Diameter: 0.88 inches
• Temperature Range [Min]: -30 °F
• Material: Steel
• Overall Length: 3 inches
• Max Operating Angle: 25 °
• Coupling Type: Universal Joints - D Type
• Bore Depth: 0.88 inches
• Insert Style: Unbored
• Color: Metallic
• Style: Single
• Length to Centerline: 1 1/2 inches
• Max RPM: 1750 RPM
• Bore Type: Solid
• Size Code: D5
• Max Torque Rating: 1176 in lb
• Bore Diameter [Max]: 0.6900 inches
• Temperature Range [Max]: 212 °F
• Weight: 0.436 pounds
• EAN or UPC: 685144157744
