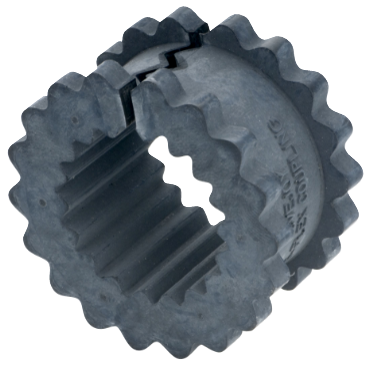

Lovejoy 9JESSLEEVE 9 JES Sleeve | S-Flex Endurance Shear Type Coupling Inserts

Product Description

Lovejoy presents the 9JES SLEEVE, a shear type coupling insert designed for effective mechanical power transmission. This insert is made from EPDM material, providing durable performance in various applications.

• Engineered for a maximum torque rating of 1,800.0 in lb.
• Temperature operational range from -30 °F to 375 °F.
• Compatible with standard flange sizes and styles.

Product Highlights

The Lovejoy 9JES sleeve excels in performance, lasting three times longer than earlier designs, making it a reliable choice for professionals.

Product Information

Standard Information

• Brand: Lovejoy
• Part #: 9JES SLEEVE

Technical Specifications

• Torque Rating [Max]: 1,800.0 in lb
• Color: Black
• Sleeve Type: JES
• Temperature Range [Min]: -30 °F
• Insert Style: One Piece Split
• Axial Misalignment: 0.125 in
• Wind-Up Angle @ Nominal Torque: 15 °
• Temperature Range [Max]: 375 °F
• Material: EPDM
• Coupling Size: 9
• HP @ RPM: 51 hp @ 1800 rpm
• Length: 1.440 in
• RPM [Max]: 3,750 rpm
• Outside Dia.: 6 in
• Torsional Stiffness (Inch Pounds/Radian): 6875
• Weight: 1.46 LB
• EAN or UPC: 685144368645
