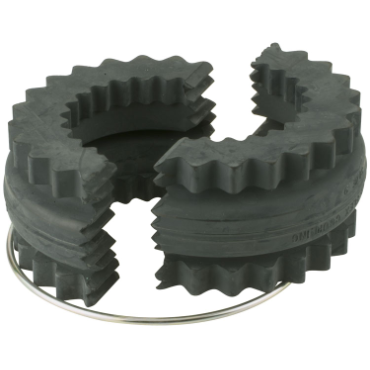

Lovejoy 9ESLEEVE 9E Sleeve | S-Flex Endurance Shear Type Coupling Inserts

Product Description

The Lovejoy 9ESLEEVE is a reliable shear type coupling insert designed to fit various applications. These EPDM inserts are known for their high performance, lasting up to three times longer than previous designs. The 9E sleeve is interchangeable with industry standards and provides compatibility with multiple flange sizes and styles.

• EPDM material for durability
• Torque rating up to 1,800 in lb
• Max RPM of 3,750

Product Highlights

Use this coupling sleeve for effective torque transfer in mechanical systems, ideal for industrial machinery and equipment.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: 102158975

Technical Specifications

• Outside Diameter: 6 inches
• Coupling Size: 9
• Insert Style: Two Piece Split with Ring
• Max Torque Rating: 1,800.0 in lb
• Sleeve Type: E
• Wind-Up Angle at Nominal Torque: 15 degrees
• Max RPM: 3,750
• Torsional Stiffness: 6,875 inch pounds per radian
• Material: EPDM
• Length: 1.440 inches
• Temperature Range: -30 degrees F to 375 degrees F
• Color: Black
• Axial Misalignment: 0.125 inches
• HP at RPM: 51 hp at 1800 rpm
• Weight: 2.35 pounds
• EAN or UPC: 685144364241
