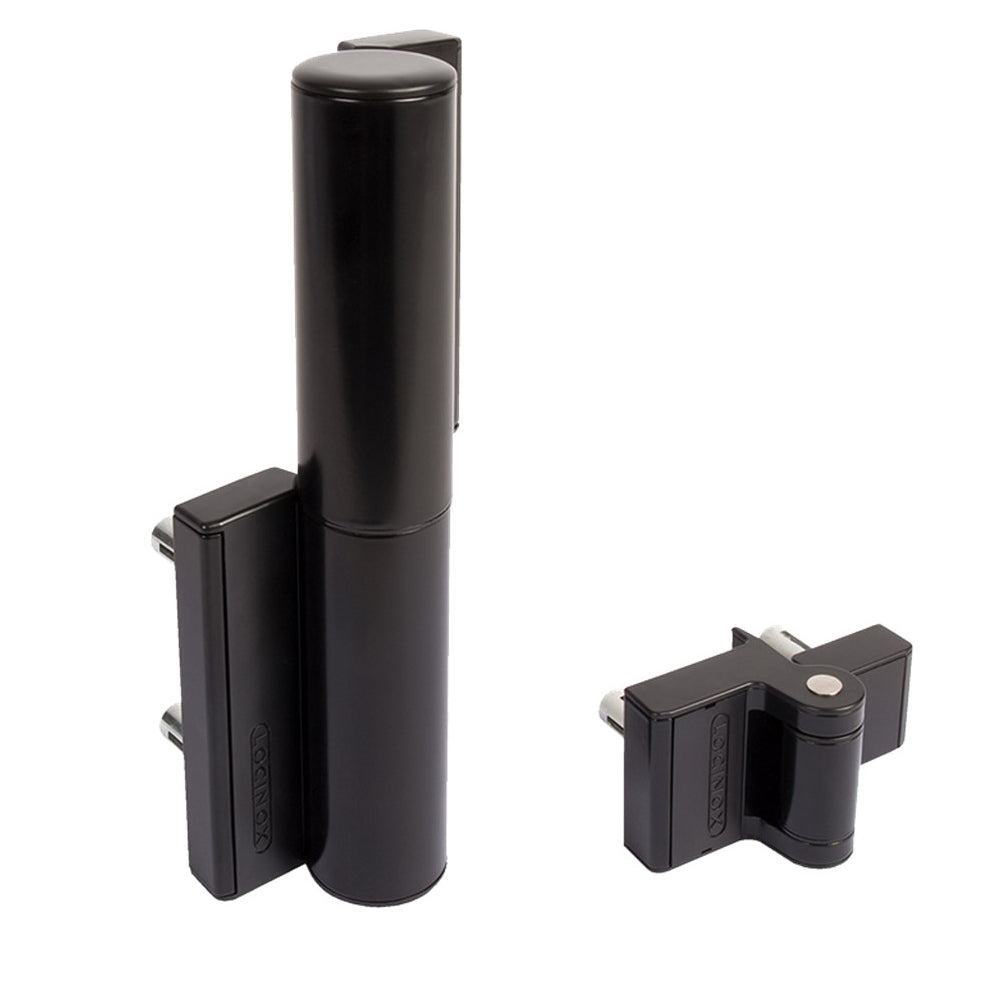

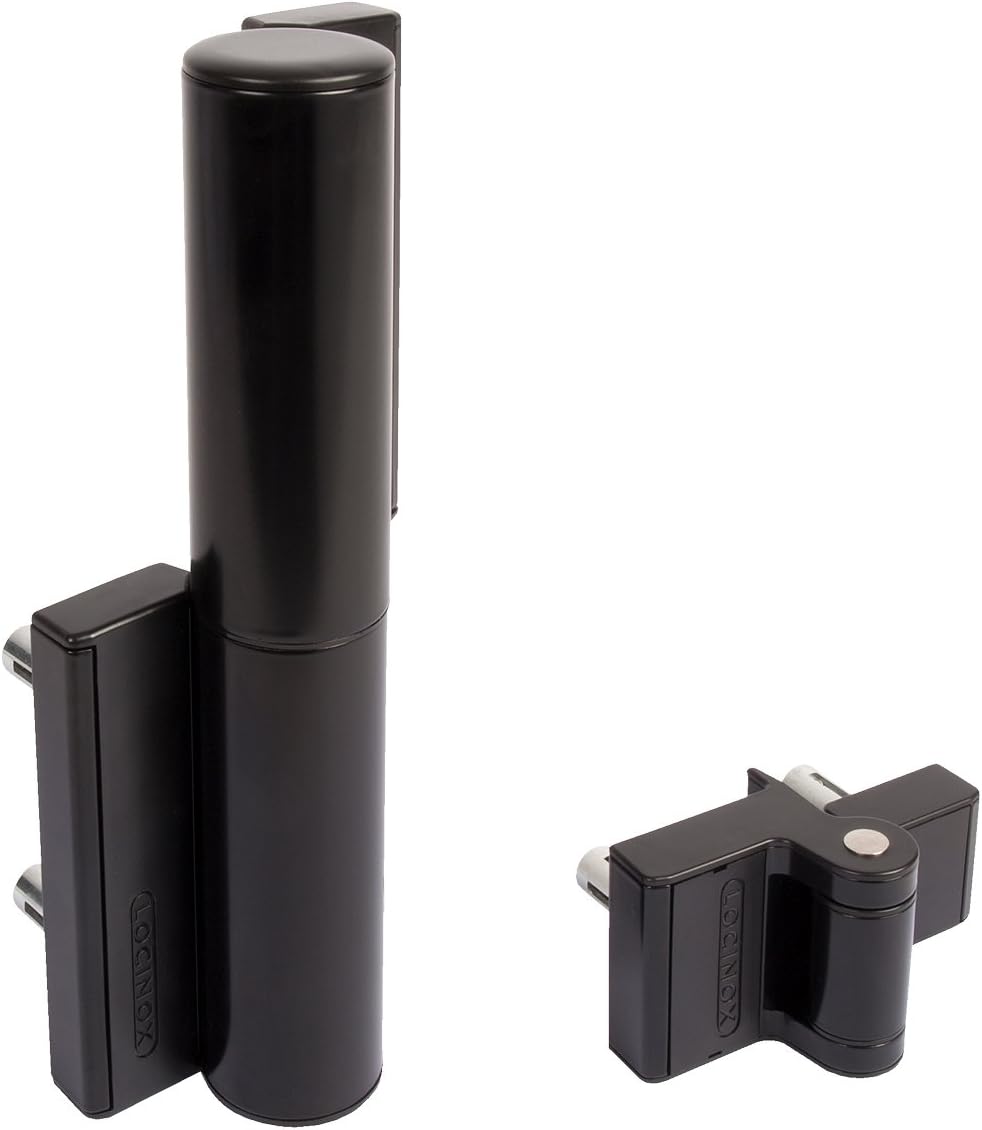

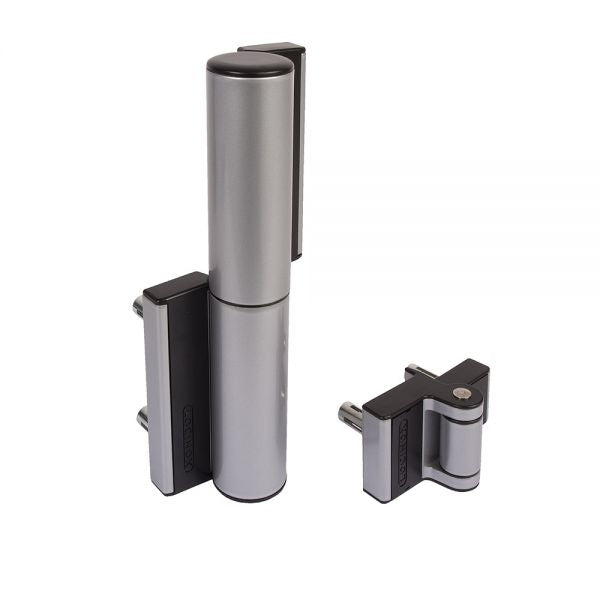

Locinox TIGER-9005 Hydraulic Gate Closer Hinge 180

Product Description

The Locinox TIGER-9005 is a 180° self-closing hydraulic gate closer and hinge designed for smooth, controlled gate operation. It features a powder-coated aluminum housing and patented hydraulic damping. This closer delivers consistent closing speed and final snap regardless of temperature or humidity. It is ideal for pedestrian gates up to 165 lbs.

• 180° operation with adjustable speed and final snap
• Patented hydraulic damping ensures consistent closure
• Powder-coated aluminum housing for long-term outdoor use

Product Highlights

The Locinox TIGER-9005 provides smooth, weatherproof gate operation with adjustable installation and ADA compliance.

Product Information

Standard Information

• Brand: LOCINOX
• Manufacturer Part Number: TIGER-9005

Technical Specifications

• Model: TIGER-9005
• Gate Compatibility: Up to 165 lbs
• Swing: 180°
• Torque: Max. 14 Nm
• Vertical Adjustability: 0.787402"
• Horizontal Adjustability: 0.590551"
• Installation Gap: 7/16" to 1" (with 5/8" adjustability)
• Finish: Black (RAL 9005)
• Housing: Powder-coated aluminum
• Included Hardware: TIGER closer + PUMA hinge
• Width (in.): 4.1875
• Height (in.): 10.4375
• ADA Compliant: Yes
• Automatic closure: 180° with adjustable closing force
• Damping: Hydraulic
• Opening and closing angle: 180°
• Casing: Powder-coated aluminum
• Installation: Fast and easy: Quick-fix
• Temperature resistance: Closing speed unaffected by humidity and temperature changes
• Gate weight capacity: Up to 165 lbs (max 3-1/2 ft. wide)
• Gate direction: For left and right turning gates
• Hinge: Aluminum powder-coated PUMA hinge included
• Testing: Tested at 500,000 movements. Tested to -22° F
