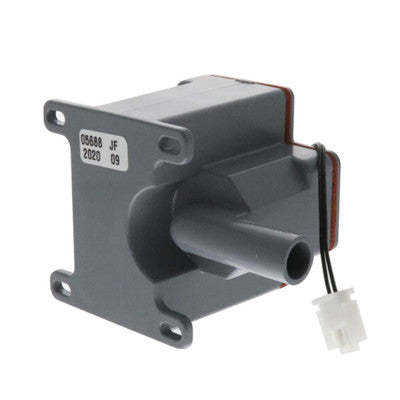

Lochinvar L100284709 Condensate Trap Assembly

Product Description

The LOCHINVAR L100284709 is a condensate trap assembly designed to manage the removal of acidic condensate from high-efficiency condensing boilers and water heaters. In condensing appliances, flue gas temperatures drop low enough to cause moisture to collect in the heat exchanger and venting system. A properly functioning trap assembly prevents flue gases from back-flowing through the drain line while allowing condensate to drain freely. This component is an OEM-style replacement part intended for installation by licensed HVAC technicians or plumbers servicing condensing heating equipment.

This condensate trap assembly is suited for use in residential and light commercial condensing boiler systems where condensate must be continuously drained during operation. It is typically installed at the base of the flue outlet or on the condensate drain connection of the appliance. Proper condensate management is essential for maintaining combustion efficiency and preventing corrosion damage to the heat exchanger and venting components.

Key Features

• Designed to allow condensate drainage while blocking flue gas backflow
• OEM replacement assembly for LOCHINVAR condensing boilers and water heaters
• Supports continuous condensate removal during appliance operation
• Compatible with acidic condensate typical of high-efficiency condensing systems

Compatibility

Designed as an OEM-style replacement condensate trap assembly for LOCHINVAR condensing boiler and water heater applications.

Installation Notes

Installation should be performed by a licensed HVAC technician or plumber familiar with condensing appliance service. Shut down the boiler or water heater and allow it to cool before replacing the condensate trap. Ensure all drain connections are secure and free of leaks after installation. Local plumbing codes and manufacturer guidelines should be followed when routing condensate to an approved drain.

Technical Specifications

• Application: Condensate management for high-efficiency condensing appliances

Standard Information

• Brand: LOCHINVAR
• Manufacturer Part Number: L100284709
