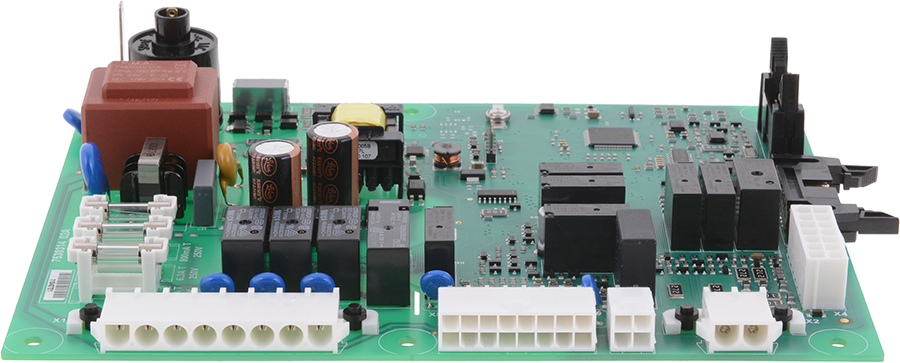

Lochinvar L100189282 Integrated Control

Product Description

The LOCHINVAR L100189282 is an integrated control designed for use in hydronic heating and water heating systems manufactured by Lochinvar. This control board manages core burner sequencing, ignition, and safety functions within the appliance. Licensed technicians and service professionals install this component as a direct replacement when the original control has failed or is flagged during a diagnostic inspection. Its role is central to system operation, coordinating the signals that govern firing, modulation, and fault protection.

This integrated control is suited for residential and light commercial Lochinvar heating appliances. It is typically installed in boiler or water heater applications where the OEM control board must be replaced to restore normal system operation. Installation is performed by qualified heating and plumbing technicians familiar with Lochinvar equipment and low-voltage control wiring.

Key Features

• OEM-style integrated control board for Lochinvar heating appliances
• Manages burner sequencing, ignition initiation, and safety lockout functions
• Designed as a direct replacement for the original factory-installed control
• Supports proper fault detection and system protection logic

Compatibility

Designed as an OEM-style replacement integrated control for Lochinvar hydronic boiler and water heating appliances. No specific model compatibility data was provided in the product information.

Installation Notes

Installation should be performed by a licensed HVAC or plumbing technician with experience servicing Lochinvar equipment. Always shut off power to the appliance at the disconnect or breaker before removing or installing the control board. Follow all applicable local codes and the manufacturer service documentation when reconnecting control wiring and input terminals. Do not restore power until all connections are verified and the appliance cover is reinstalled.

Technical Specifications

• Brand: LOCHINVAR
• Manufacturer Part Number: L100189282

Standard Information

• Brand: LOCHINVAR
• Manufacturer Part Number: L100189282
