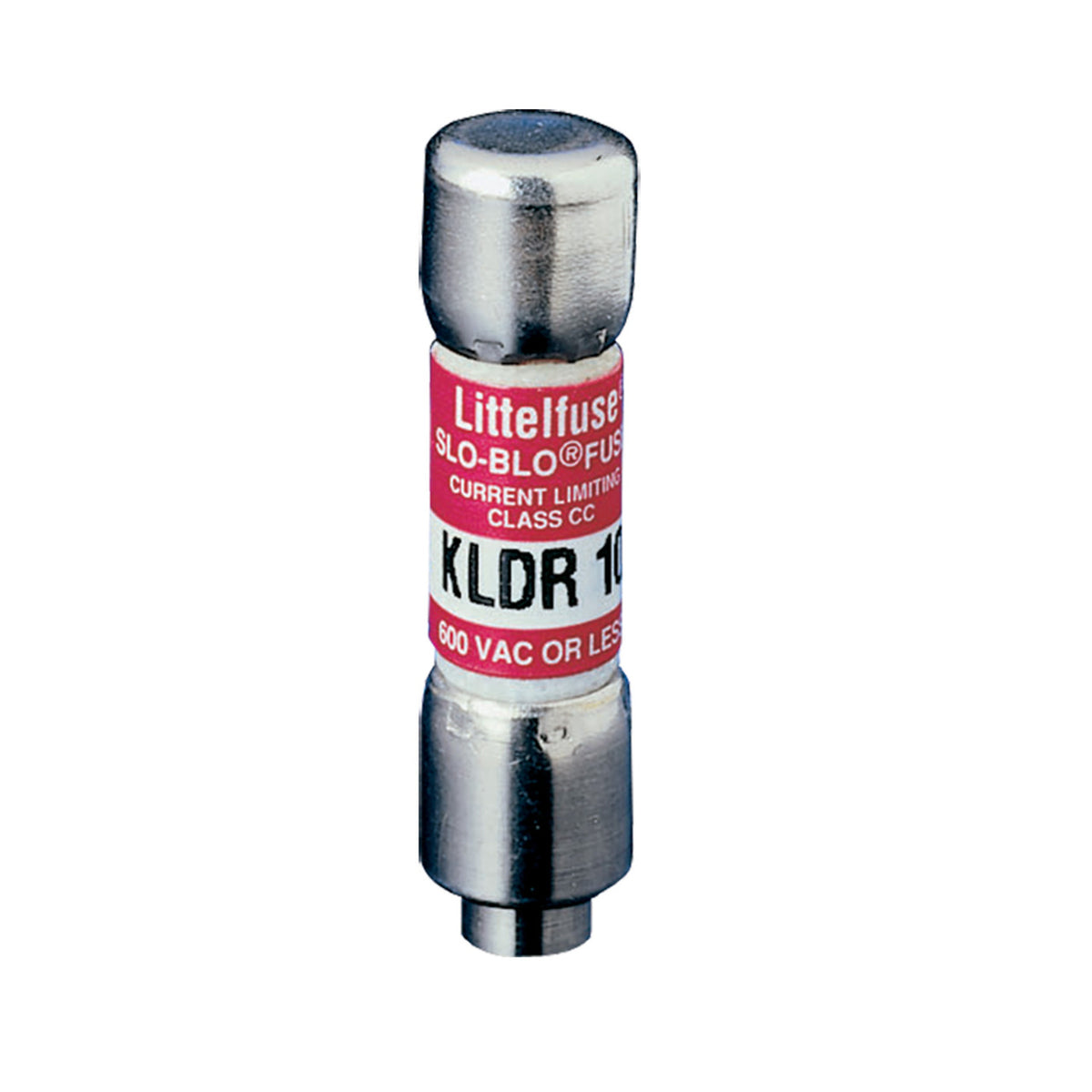

Littelfuse KLDR01.4TXP Time Delay Fuse 600V 1.4A Class CC

Product Description

The Littelfuse KLDR01.4TXP fuse is engineered for optimal performance in protecting control transformers, solenoids, and motor circuits in high magnetizing current environments. This fuse operates at 600 volts with a 1.4 ampere current, suited for both AC and DC applications.

• Designed specifically for transformer protection.
• Features a time-delay function to manage inductive loads.
• Rated for 20/200 kA interrupt capacity, ensuring robust fault protection.

Product Highlights

The KLDR01.4TXP incorporates a nickel-plated bronze cap and a melamine body, which ensure durability and safety under high-current conditions. Its rejection feature prevents misuse with incompatible holders.

Product Information

Standard Information

• Type: Current Limiting Class CC
• Applications: Transformer Protection
• Mounting Type: Holder
• Response Time: 12 seconds

Technical Specifications

• Amperage Rating:
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 20/200 kA
• Material: Melamine
• Terminal Type: Ferrule
• Standards/Approvals: UL 248-4, CSA LR29862
• CA Prop65 Warning: Contains nickel
