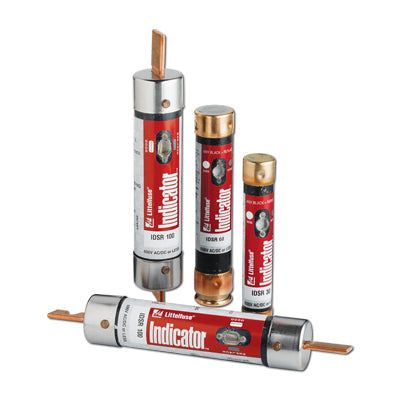

Littelfuse IDSR100 LITTELFUSE 100A DELAY 600V W/ID RK5 DUAL ELEMENT

Product Description

The Littelfuse IDSR100 is a time delay fuse designed for current limiting applications. This fuse operates at 100 amperes with a voltage rating of six hundred VAC or VDC. Part of the RK5 class, it features a cylindrical body and a dual element design. It is ideal for circuits including solar inverters, motors, transformers, solenoids, and fluorescent lighting.

• Amperage rating of one hundred A
• Voltage rating of six hundred VAC/VDC
• UL standard certified

Product Highlights

This fuse is designed to enhance circuit protection and minimize downtime by providing visual indication of circuit status.

Product Information

Standard Information

• Manufacturer: Littelfuse
• MPN: IDSR100

Technical Specifications

• Body Size: 1-5/16 inches in diameter x 7-7/8 inches long
• Body Type: Cylindrical
• Class: RK5
• Element: Dual
• Indicating: Yes
• Material: Composite
• Mounting Type: Holder
• Response Time: 10 seconds
• Terminal Type: Knife Blade
• Type: Current Limiting
• Voltage Rating: 600 VAC/VDC
