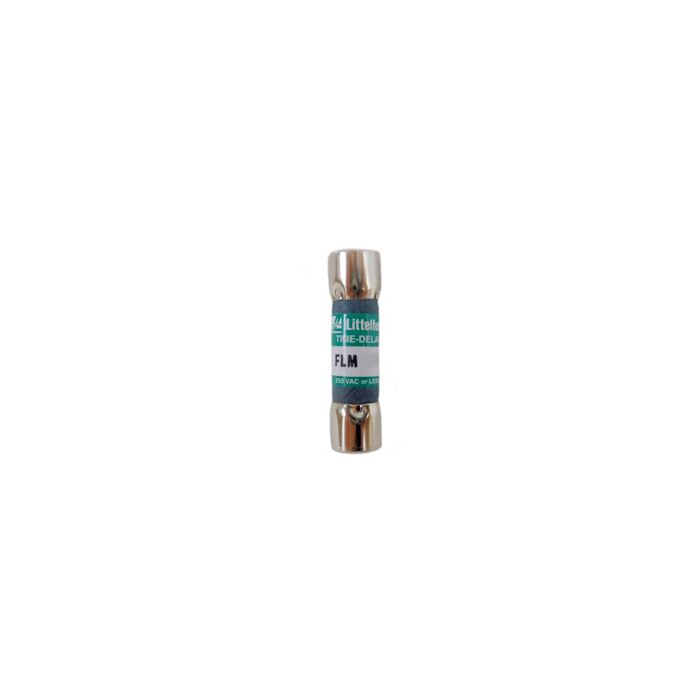

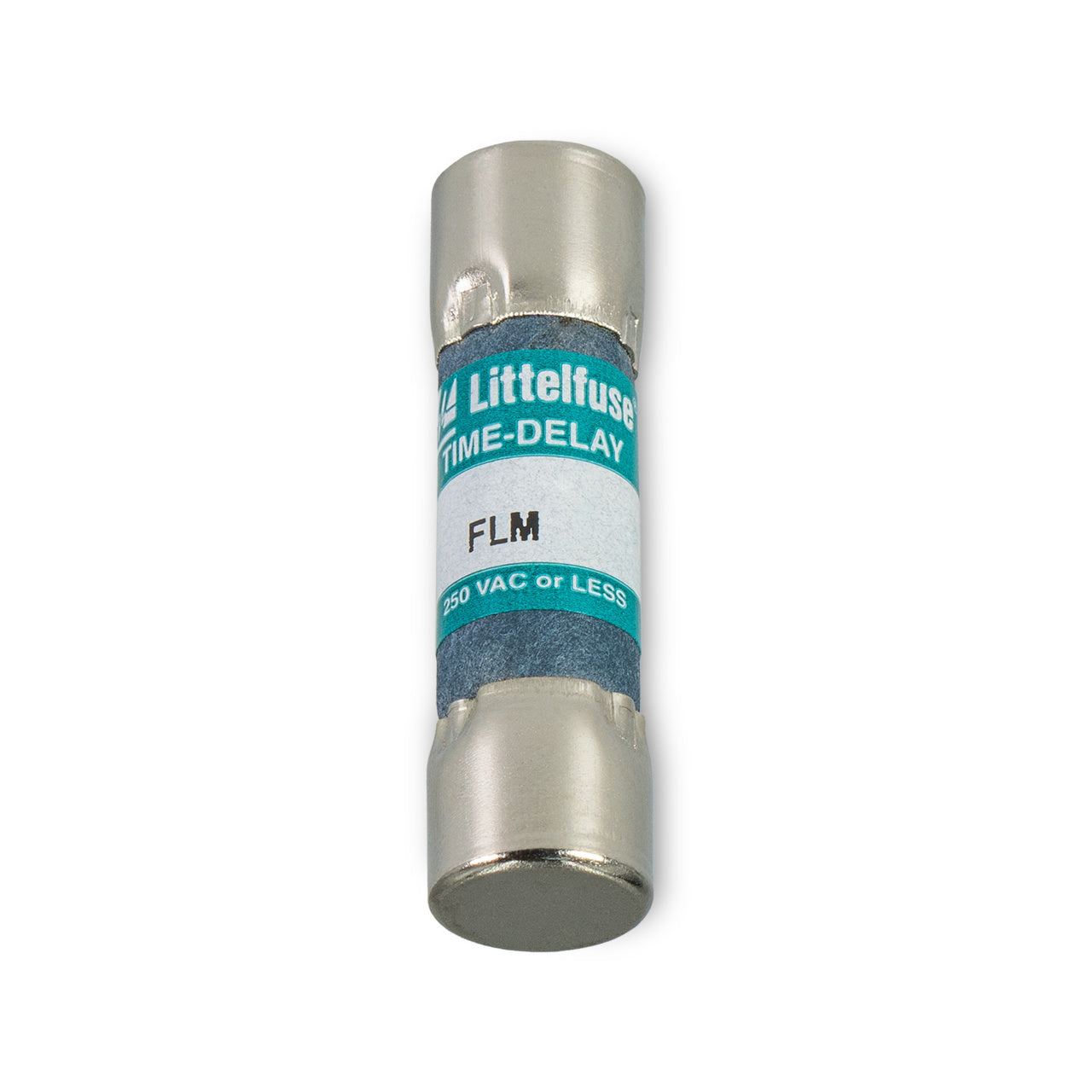

Littelfuse FLM03.2 Midget Fuse 3.2A

Product Description

The Littelfuse FLM03.2 is a Midget fuse rated at 3.2A. This time-delay fuse is designed for supplemental protection in circuits, particularly those with small motors and high in-rush current. Its cylindrical design incorporates ferrule terminals for clip mounting.

• Rated for 3.2A at 250Vac/125Vdc
• Interrupting rating of 10,000A at 250Vac
• Slo-Blo/time lag feature for delayed response

Product Highlights

This fuse is ideal for use in applications requiring reliable performance under high in-rush conditions, providing necessary protection without unnecessary trip events.

Product Information

Standard Information

• Brand: Littelfuse
• Country of Origin: Mexico

Technical Specifications

• Current Rating: 3.2A
• Interrupting Rating: 10,000 AIC @ 250VAC
• Voltage Rating: 250V AC / 125V DC
• Size: Midget / 5AG
• Type: Slo-Blo
• Body Type: Cylindrical
• Dimensions: 1.5 inches x 0.4 inches x 0.4 inches
• Mounting Method: Clip
• Fuse Class: Midget / Class CC
• Response Time: 12 seconds minimum at 200%
