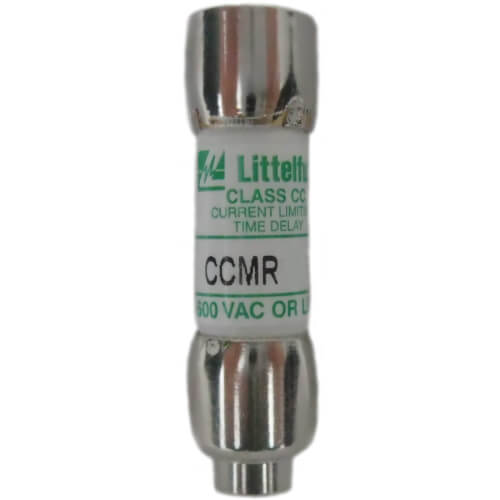

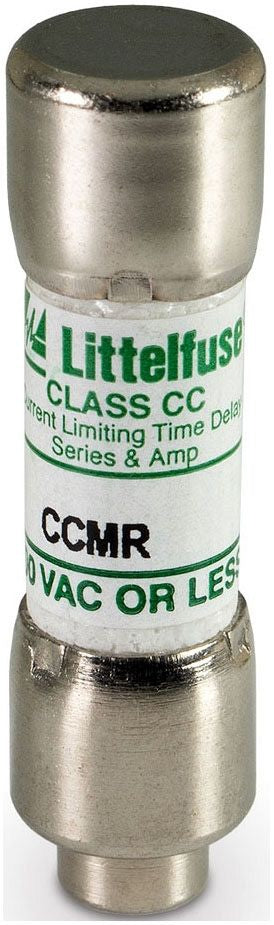

Littelfuse CCMR.600TXP Fuse 600V Time Delay 0.6 A

Product Description

The Littelfuse CCMR.600TXP fuse is a time delay fuse designed for motor circuit protection. It operates at 0.6 amperes with a voltage rating of 600 VAC and 250 VDC. This fuse intends to safeguard motors up to 40 horsepower, especially during starting currents. It is compact, fitting into tight spaces while providing significant circuit protection.

• Time delay for better protection of circuits
• 600 VAC and 250 VDC voltage ratings
• Extremely current limiting to enhance safety

Product Highlights

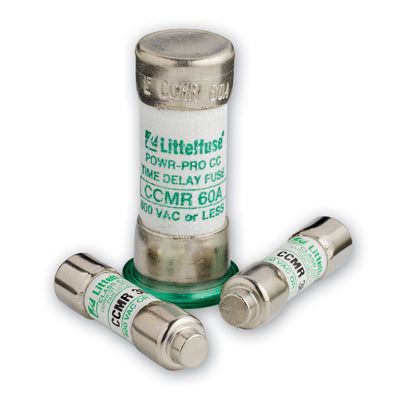

The CCMR series fuses are engineered for motor branch circuit protection and are highly rated for their interrupting abilities.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer Part Number: CCMR.600TXP

Technical Specifications

• Amperage Rating: 0.6 A
• Voltage Rating: 600 VAC / 250 VDC
• Interrupting Rating: 20 / 200 kA
• Mounting Type: Holder
• Class: CC
• Body Size: 0.41 in Dia x 1.5 in L
• Element: Dual
• Frequency Rating: 50/60 Hz
• Country of Origin: MX
• Indicating/Non-Indicating: Non-Indicating
