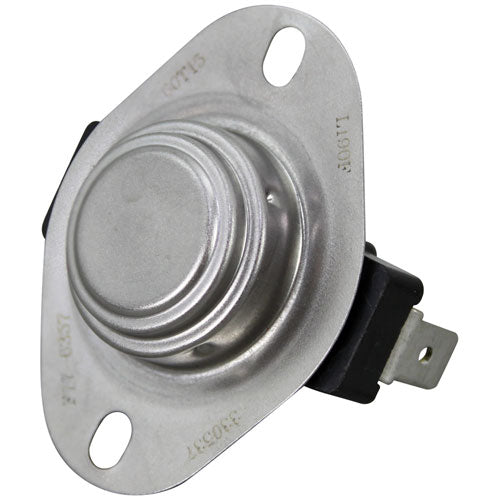

LIMIT SWITCH for Holman 200566

Product Description

This item for Holman MPN 200566 is a limit switch used in various applications including Belleco toasters. It has a manual reset button on the back and features two mounting holes. The switch includes a disc type sensor that operates at a temperature of one hundred ninety degrees Fahrenheit.

• Hi-limit type - 60T15, compatible with models A1147 and A1241.
• Comes with two one-quarter tabs and two mounting holes.
• Old style with tabs at one hundred eighty degrees, new style with tabs at ninety degrees.

Product Highlights

This limit switch is designed for manual resetting and can be adjusted for different mounting configurations.

Product Information

Standard Information

• Weight: 0.1 lbs
• Dimensions: 2 inches x 2.5 inches x 1.25 inches

Technical Specifications

• MPN: 200566
• Old Style Tabs: 180 degrees
• New Style Tabs: 90 degrees
• Disc Diameter: 0.928 inches
• Mounting Holes Center: 1.625 inches
• Hi-limit Type: 60T15
• Compatible Models: Belleco Toaster, Holman All Models
