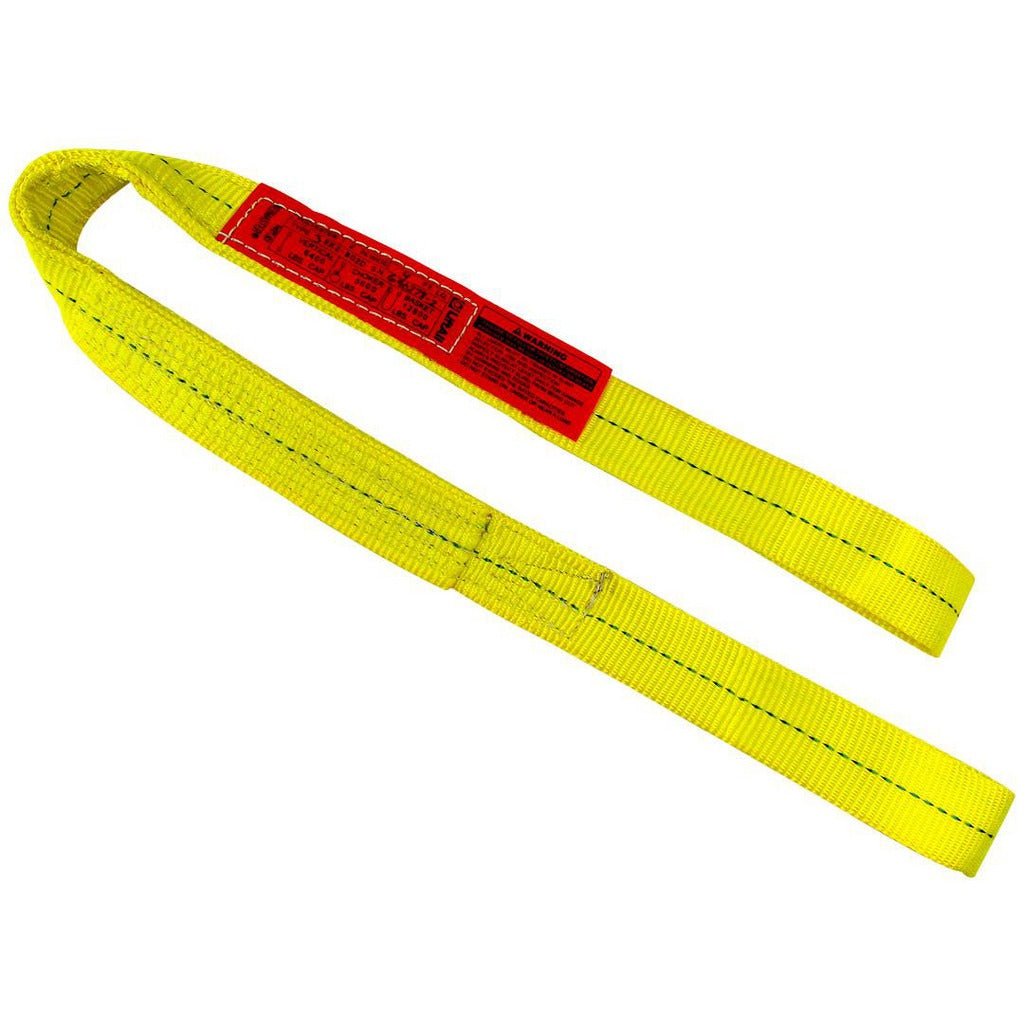

Lift-all EN1806DX4 Endless Polyester Web Sling 6in 4ft

Product Description

The LIFT-ALL EN1806DX4 is a single-ply endless polyester web sling rated for vertical lifts up to 16,500 pounds (8.50 tons). Classified as a Type 5 endless sling, it measures 6 inches wide and 4 feet long, making it well suited for medium to heavy rigging applications where a continuous loop configuration is required. The yellow polyester webbing provides abrasion resistance and remains functional at temperatures up to 200 degrees F. Rigging professionals and industrial maintenance crews are the primary installers. The endless loop design eliminates hardware at the termination points, distributing load evenly across the full width of the sling body.

This sling is used in industrial, manufacturing, and construction settings where controlled lifting of heavy components is needed. The choker hitch rating of 13,200 pounds makes it a practical option when wrapping loads that require a cinching configuration. The single-leg, single-ply construction keeps the profile compact for use in confined lift geometries. It is appropriate for overhead lifting applications where polyester webbing is preferred over wire rope or chain due to surface protection requirements.

Key Features

• Type 5 endless loop configuration eliminates end fittings and distributes load evenly
• 16,500 lb vertical capacity and 13,200 lb choker capacity
• 6 inches wide single-ply polyester webbing with abrasion-resistant construction
• Rated for use up to 200 degrees F
• Meets OSHA 1910.184, ASME B30.9, and WSTDA standards
• Yellow color for visual identification in the field

Compatibility

Designed as an OEM-style endless web sling for use with standard hook, shackle, and lifting beam rigging hardware rated to match or exceed the sling capacity. Consult your rigging hardware load ratings before assembly.

Installation Notes

Overhead rigging must be performed by a qualified rigger in accordance with OSHA 1910.184 and ASME B30.9. Inspect the sling for cuts, fraying, or discoloration before each use and remove from service if damage is found. Never exceed the rated capacity for the hitch configuration in use. Do not use this sling in contact with sharp edges without appropriate edge protection.
