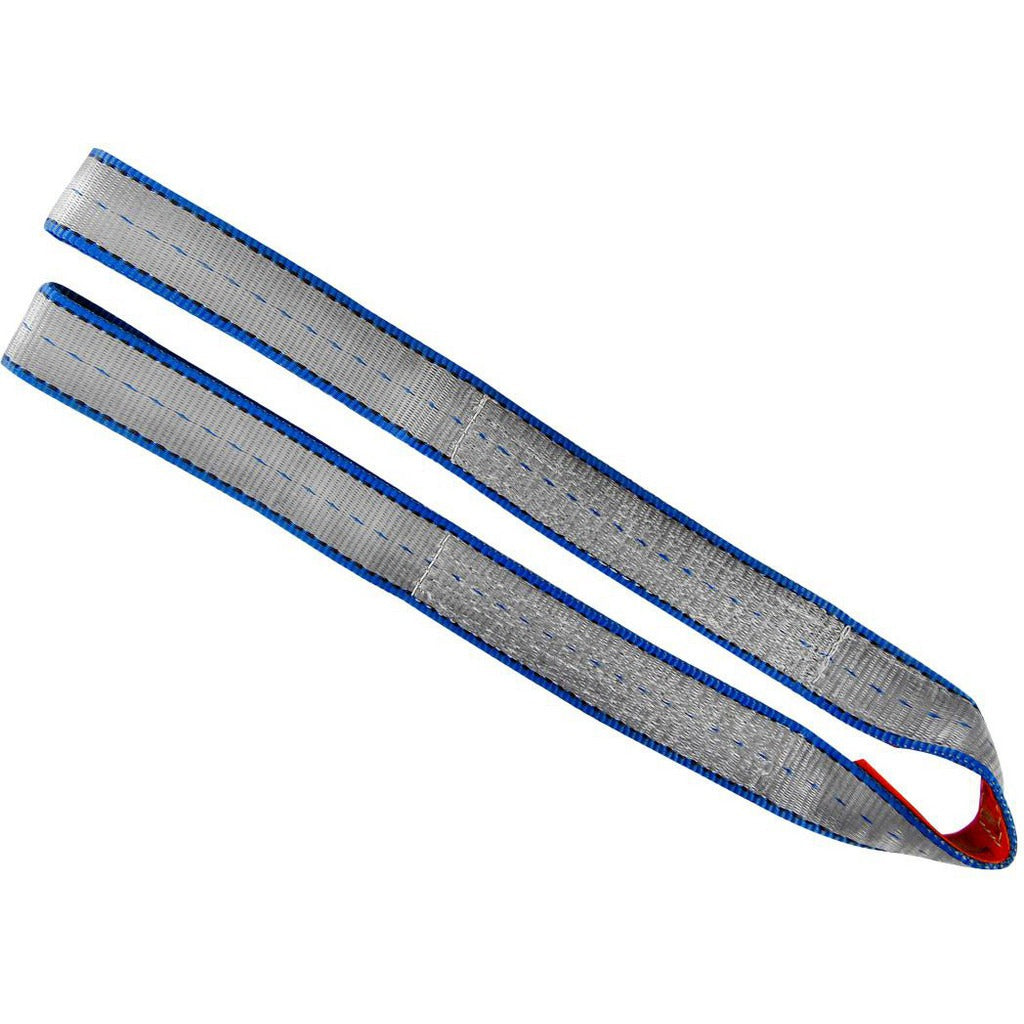

Lift-all EE2803TTX10 Eye Eye Polyester Sling 3in 10ft

Product Description

The LIFT-ALL EE2803TTX10 is a Type 4 twisted eye-and-eye polyester web sling rated for a vertical lift capacity of 8,800 pounds (4.4 tons) and a choker capacity of 7,040 pounds. Constructed with 2 plies of abrasion-resistant polyester webbing, this single-leg sling measures 3 inches wide and 10 feet long. It features twisted and tapered eyes on both ends, allowing easy attachment to hooks and lifting hardware. Rigging professionals and industrial maintenance crews use this sling where synthetic web lifting equipment is required by job specification or material handling protocols.

This sling is suited for single-leg vertical and choker-hitch lifts in industrial, construction, and manufacturing environments. The polyester construction resists moisture and many common chemicals while remaining gentle on finished or coated load surfaces. It carries a maximum working temperature rating of 200 degrees F, making it appropriate for standard indoor and outdoor rigging operations. The sling is color-coded gray and blue for quick capacity identification on the job site.

Key Features

• Type 4 twisted eye-and-eye configuration for secure hook engagement on both ends
• 8,800 lb vertical capacity and 7,040 lb choker capacity
• 2-ply abrasion-resistant polyester webbing for extended service life
• Twisted and tapered eyes for easy reeving through hooks and shackles
• Rated to 200 degrees F maximum working temperature
• Compliant with OSHA 1910.184, ASME B30.9, and WSTDA standards

Compatibility

Designed for use as a standard single-leg synthetic web lifting sling in rigging applications where Type 4 eye-and-eye slings are specified per ASME B30.9 or job-site rigging plans.

Installation Notes

Rigging and sling installation must be performed by or under the supervision of a qualified rigger familiar with OSHA 1910.184 and ASME B30.9 requirements. Inspect the sling for cuts, abrasion, UV degradation, and tag legibility before each use and remove from service if damage is found. Never exceed the rated capacity for the hitch type in use, and avoid contact with sharp edges without proper padding. Store the sling away from direct sunlight, heat sources, and corrosive substances when not in use.
